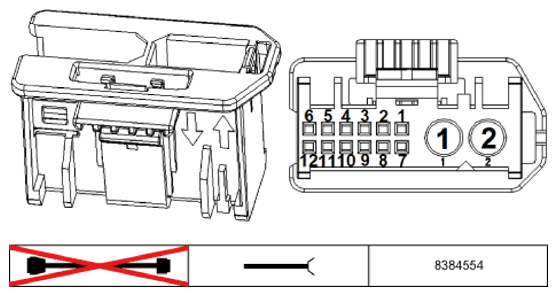

Headset Connection Module X10385 Connector End View
PIN Assignments At Plug Connector X10385
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30G | Fuse F108 |
| 2 | M | Ground | Ground point |
| 3 | - | Not occupied | |
| 4 | - | Not occupied | |
| 5 | - | Not occupied | |
| 6 | A | Audio signal | Rear seat entertainment |
| 7 | A | Audio signal | Rear seat entertainment |
| 8 | M | Shielding | Rear seat entertainment |
| 9 | - | Not occupied | |
| 10 | - | Not occupied | |
| 11 | - | Not occupied | |
| 12 | - | Not occupied |
