24 34... Notes on mechatronics (GA6HP26Z/GA6HP32Z/GA6HP19Z)
Special tools required:
IMPORTANT:
After completing repair work:
- Load specific data status with the BMW diagnosis system.
- Check transmission oil level
. See 00 11 500 CHECKING/TOPPING UP OIL LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z)
.
Use only approved transmission oil. See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS or DUAL-CLUTCH TRANSMISSION -- OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.

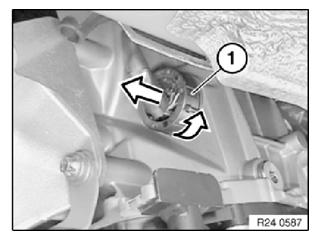

Unscrew connector (1) and disconnect.
Insert special tool 24 2 390 in sealing sleeve (1).
