61 61... Overview of windscreen wiper, windscreen washer and headlight washer systems

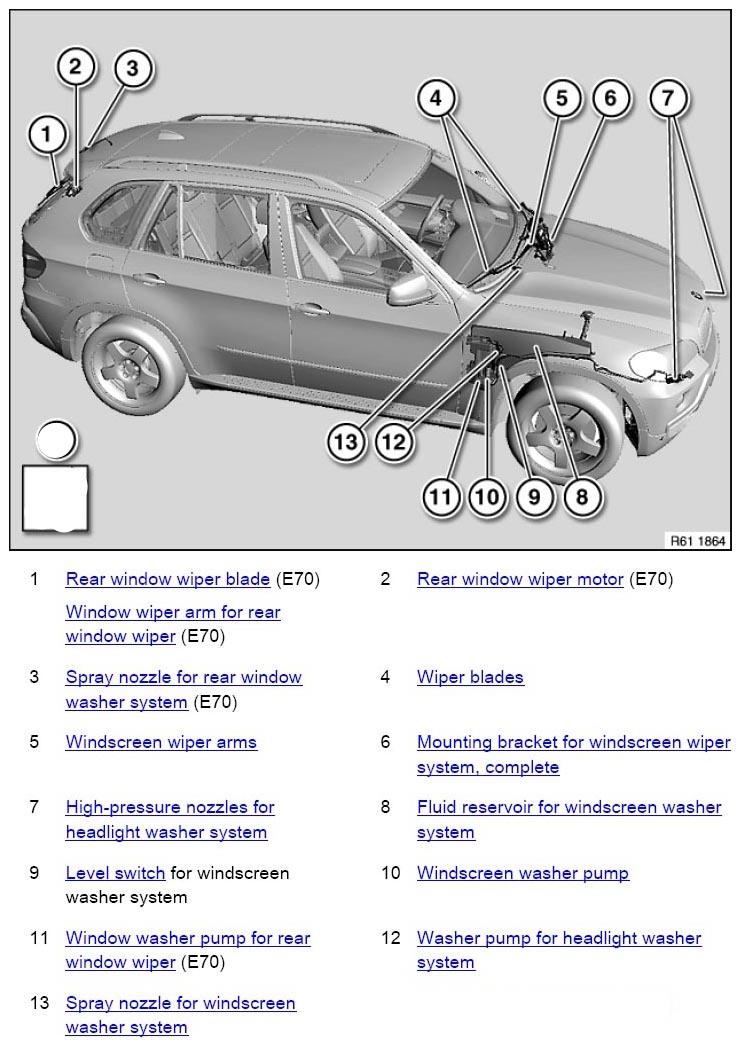

Fig 1: Overview Of Windscreen Wiper, Windscreen Washer And Headlight Washer Systems
G08530650Courtesy of BMW OF NORTH AMERICA, INC.
