61 35 950 Removing and installing/replacing control unit for Comfort Access System (Passive Go)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

E70:

Lift back insulating mat (1).

Disconnect plug connection (3).

Unlock catch (2) and remove control unit for Comfort Access System (4) from device carrier (5).

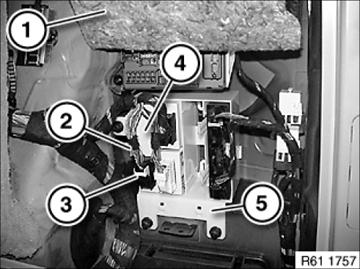

Fig 1: Identifying Comfort Access System, Device Carrier, Plug Connection, Insulating Mat And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
