41 00... Carrying Over Hole Pattern

When replacing a body component, it is necessary to carry over the hole pattern from the existing body to the new component.

The following pictures are a schematic representation of carrying over the hole pattern on the example of the front wheel arch.

Necessary preliminary tasks:

Adjust new part to fit with straightening attachment.

Insert paper stencil (1) between new component (2) and engine carrier and secure with adhesive tape (3).

Carry over contour (4) of new component to stencil.

Remove new component.

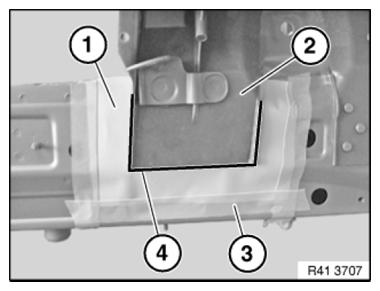

Fig 1: Identifying Paper Stencil, Adhesive Tape And Contour
G08558352Courtesy of BMW OF NORTH AMERICA, INC.
  1. = contour of new component.

Carry over positions of holes (2) to stencil by pressing down with thumbs.

Remove stencil.

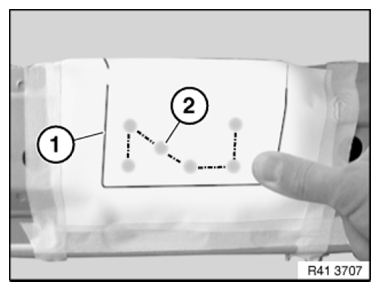

Fig 2: Identifying Contour Of Component And Positions Of Holes
G08558353Courtesy of BMW OF NORTH AMERICA, INC.

Lay stencil (1) on a flat surface.

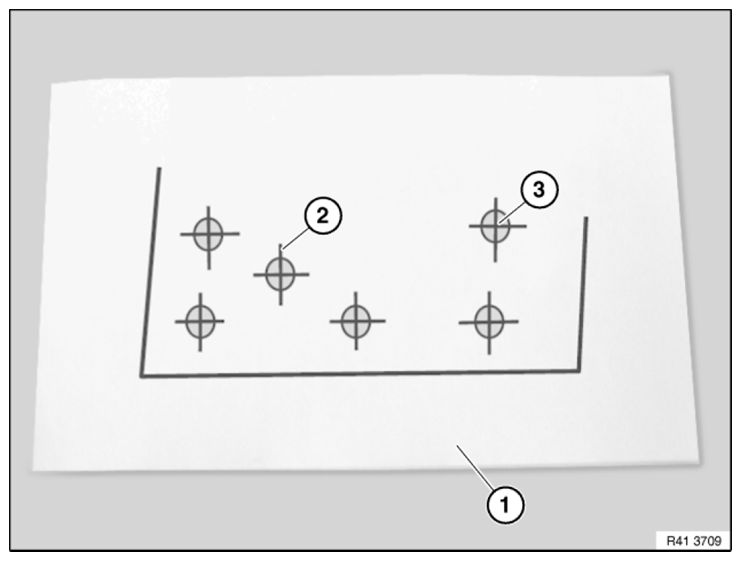

Fig 3: Identifying Stencil, Centrepoints Of Holes, And Adhesive Tape
G08558354Courtesy of BMW OF NORTH AMERICA, INC.

Mark centrepoints of holes with crosses (2).

Then pierce paper through centrepoints (3) of holes with a pointed object.

Align stencil (1) according to contours (2) to inside of new component and secure with adhesive tape (3).

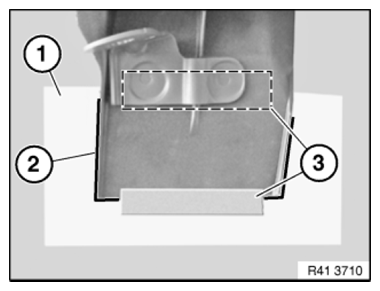

Fig 4: Identifying Stencil, Contours And Adhesive Tape
G08558355Courtesy of BMW OF NORTH AMERICA, INC.

Turn over new component.

IMPORTANT: Crosses must not be visible in this view!

Set punch marks at pierced centrepoints (1).

Grip directly under punch marks for marking with punch.

Remove stencil (2).

Drill holes to approx. 3 - 4 mm dia. at punch marks (1).

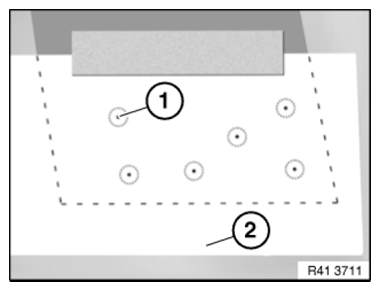

Fig 5: Identifying Punch Marks Centrepoints And Stencil
G08558356Courtesy of BMW OF NORTH AMERICA, INC.

Position new component (1) with straightening attachment on vehicle.

Drill out holes (2) to 6.7 mm dia.

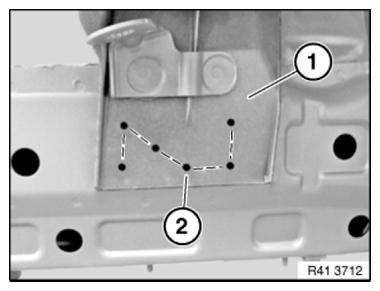

Fig 6: Identifying Component With Straightening Attachment And Holes
G08558357Courtesy of BMW OF NORTH AMERICA, INC.
