32 41... Replacing level switch for Dynamic Drive fluid reservoir

Unscrew nuts.

Remove shims.

Installation:

Tightening torque 32 41 1AZ .

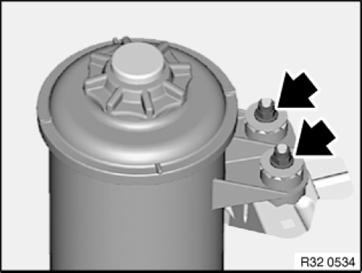

Fig 1: Locating Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

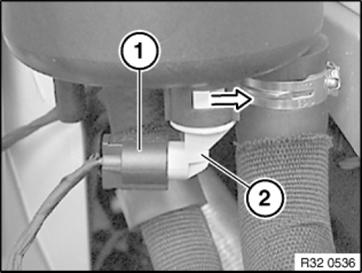

Fig 2: Removing Fluid Reservoir Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
