61 31 009 Repairing steering column switch cluster (SZL)

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Note on ordering:

IMPORTANT: Extreme cleanliness is required!

NOTE: Installation is described separately.

Removal:

Unlock retaining lugs on upper housing section (1) with a suitable tool.
Remove upper housing section.

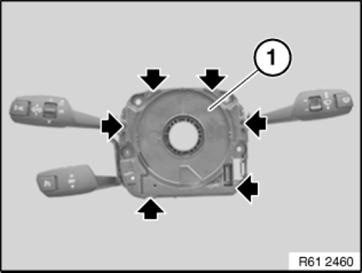

Fig 1: Locating Upper Housing Section Retaining Lugs
Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) in optical element (2).

IMPORTANT: Touch only the optical element.

NOTE: After removal, render optical element unusable and dispose of it in the appropriate manner.

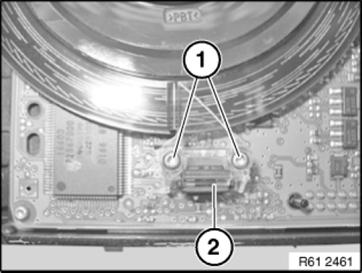

Fig 2: Identifying Optical Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

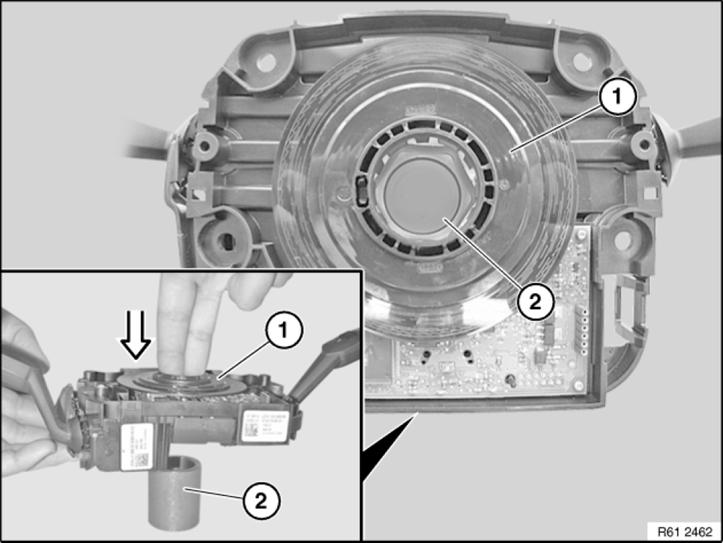

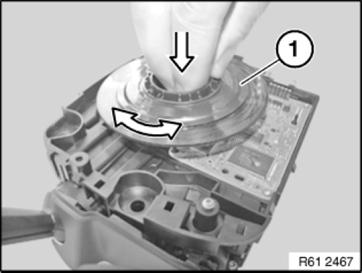

Fig 3: Holding Rear Steering Column Switch Cluster Encoded Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip encoded disc (1) from rear of steering column switch cluster with plastic tube (2) supplied for the purpose.

In this process, hold encoded disc by inserting two fingers in the hole.

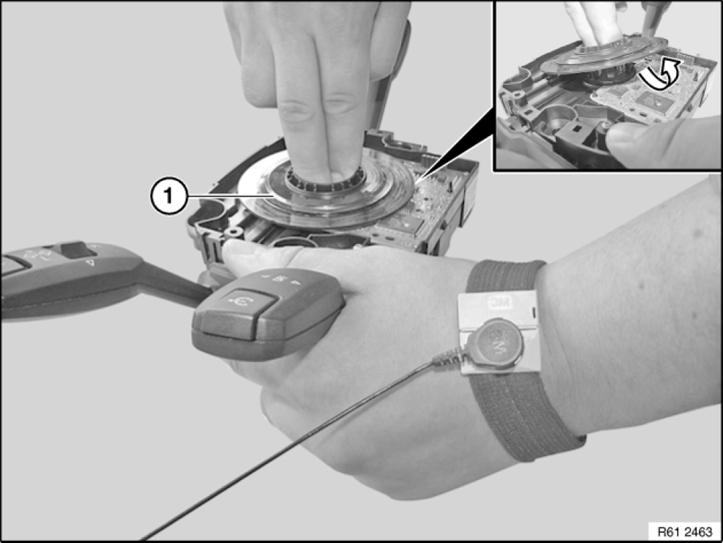

Fig 4: Removing Rear Steering Column Switch Cluster Encoded Disc

Courtesy of BMW OF NORTH AMERICA, INC.

To prevent damage, tilt encoded disc (1) away from the printed circuit board when removing.

IMPORTANT: It is not permissible to clean the bearing points.

IMPORTANT: Make sure that encoded disc, optical element and printed circuit board do not come into contact with grease.

Apply grease supplied for the purpose to friction face (1) of bearing race of front of steering column switch cluster.

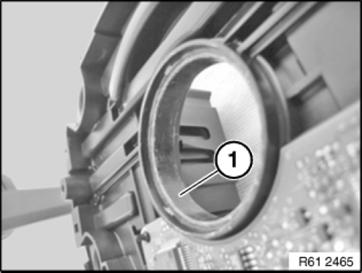

Fig 5: Identifying Front Steering Column Switch Cluster Bearing Friction Face

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Thoroughly clean your hands before installation.
Before installing the new parts, put on gloves and hair net included in the repair kit!

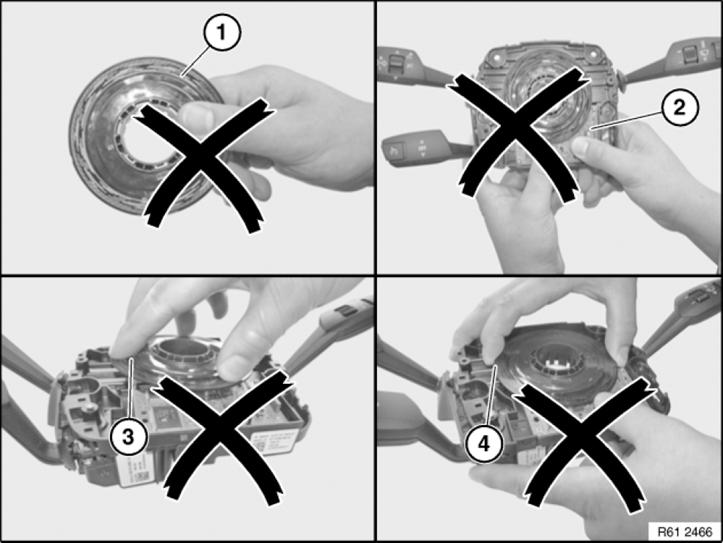

Fig 6: Caution For Touching Encoded Disc

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Not permitted!

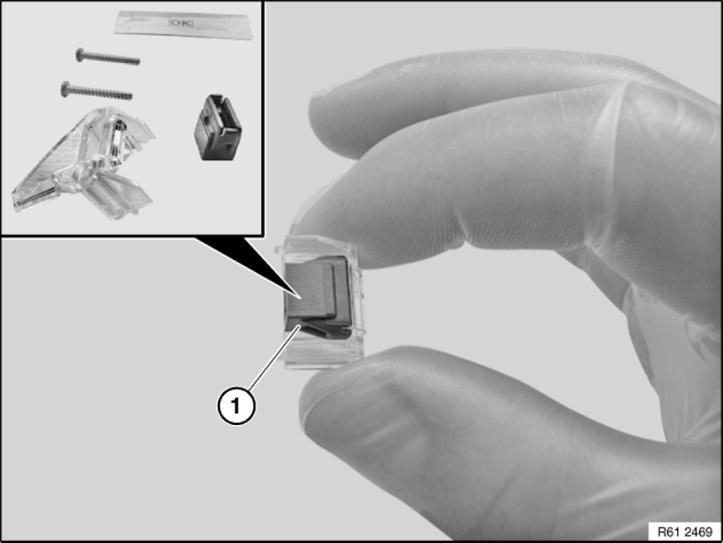

Assembly optical element (1) from individual parts included in the repair kit.

Secure optical element (2) with screws (1).
Tightening torque: 0.26 Nm.

Fig 9: Identifying Optical Element And Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Clip upper housing section (1) into place.
After inserting coil spring cassette, affix "CDS" label close to part-number label (2).

Installation note:

Make sure retaining lugs are correctly engaged.

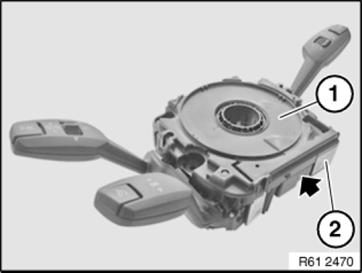

Fig 10: Locating Part-Number Label

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark (1) and mark (2) must point to each other.

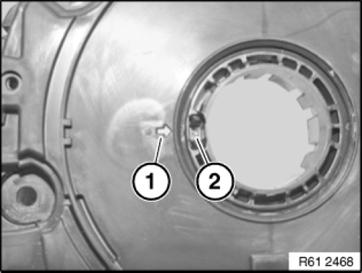

Fig 11: Identifying Marking On Ring

Courtesy of BMW OF NORTH AMERICA, INC.
