61 31 193 Removing and installing/replacing button unit (menu/voice input)

Necessary preliminary tasks:

• Remove CENTRE CONSOLE TRIM

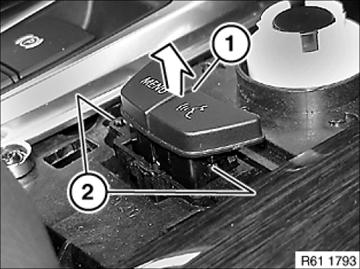

Unlock catches (2) and feed button unit (1) in direction of arrow out of controller.

Fig 1: Removing Button Unit From Controller

Courtesy of BMW OF NORTH AMERICA, INC.

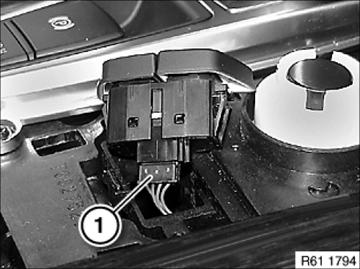

Disconnect plug connection (1) and remove button unit.

Fig 2: Identifying Button Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
