61 13... Connector housing, LCC contact (load current contact)

Special tools required:

Socket housing:

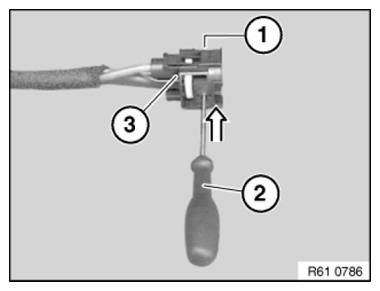

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing Lock From Socket Housing Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

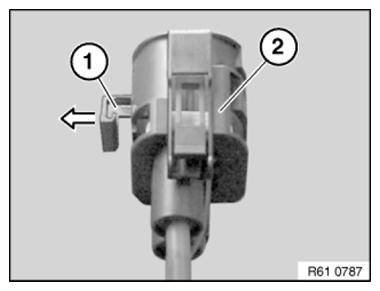

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock From Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

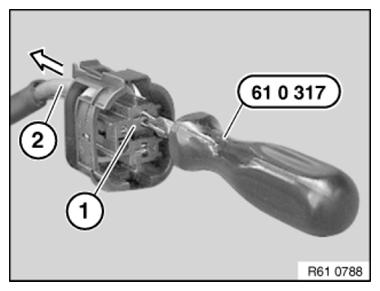

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool (61 0 317) Into Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

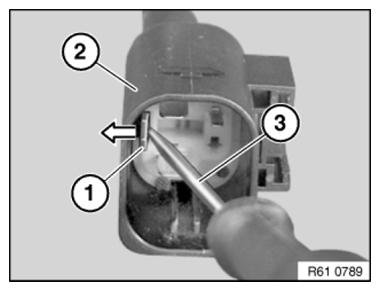

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Locking Pin Housing Slide Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

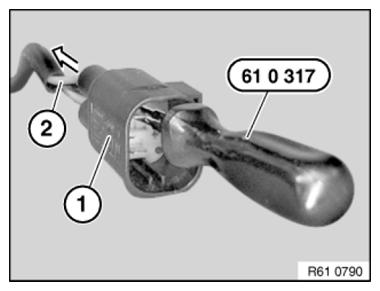

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool (61 0 317) Into Pin Housing

Courtesy of BMW OF NORTH AMERICA, INC.
