32 31 090 Removing And Installing/Replacing Steering Column
IMPORTANT:
To avoid damaging the coil spring cassette, it is necessary to remove the steering wheel because of the absence of a steering column lock!
Necessary preliminary tasks:
- Move steering column into "extended" position.
- Disconnect BATTERY EARTH LEAD .
- Remove steering wheel . See 32 33 010 REMOVING AND INSTALLING/REPLACING SPORT STEERING WHEEL , 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL or 32 33 010 REMOVING AND INSTALLING/REPLACING SPORT STEERING WHEEL
- Remove TRIM PANEL FOR PEDAL MECHANISM .
- Remove steering column trims . See 32 31 003 REMOVING AND INSTALLING/REPLACING UPPER SECTION OF STEERING COLUMN TRIM or 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN TRIM .
- Replacement only: Remove STEERING COLUMN CONTROL PANEL .
IMPORTANT:

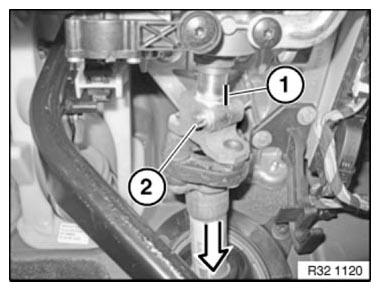

Mark installation position (1) of steering spindle in relation to steering column.
Release clamping screw (2) and pull off steering spindle in direction of arrow.
Installation note:
Do not damage toothed shaft.
Recut thread in steering spindle.
Replace clamping screw (2).
Clamping screw must rest in groove of upper steering spindle.
No subsequent retorquing permitted!
Tightening torque: 32 31 3AZ .

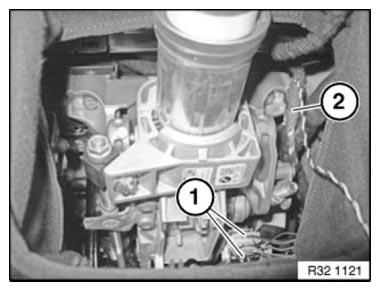

Disconnect plug connection (1).
Unclip wiring harness (2) and lay to one side.

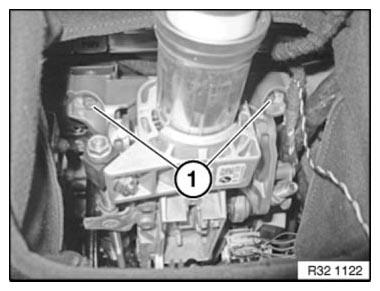

Release screws (1).
Tightening torque: 32 31 1AZ .
Secure steering column against falling out.

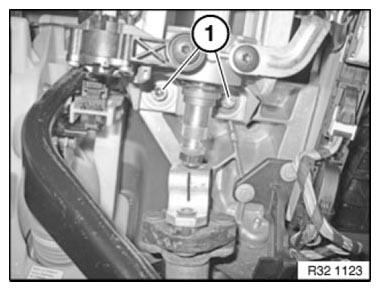

Release screws (1).
Tightening torque: 32 31 1AZ .
Feed steering column upwards to remove.
After installation:
- If necessary, carry out NORMALIZATION of electric steering column adjustment.
- Vehicles with active steering: When replacing the steering column, carry out the ACTIVE STEERING START-UP procedure!
- Replacement only: Turn steering wheel in both directions to the limit position. The airbag indicator light must not light up in the process.
- Check directional stability of vehicle and straight-ahead position of the steering wheel.
