61 14 005 Removing and installing/replacing distribution box (front)
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
- Remove GLOVE BOX
- Remove LOWER INSTRUMENT PANEL TRIM

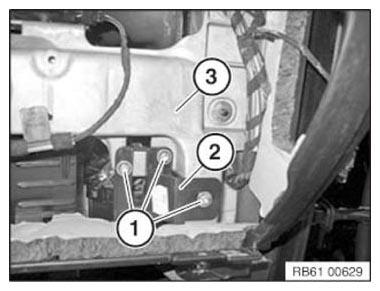

Release screws (1).
Tightening torque 61 14 1AZ .
Maneuver out power distribution box together with bracket (2) from instrument panel mounting bracket (3).
Maneuver out power distribution box together with bracket (2) in direction of footwell

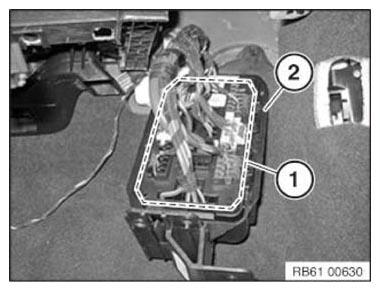

Unlock and disconnect all plug connections in area (1).
Remove power distribution box together with bracket (2).
Installation note:
Make sure all plug connections are correctly locked.
Replacement:

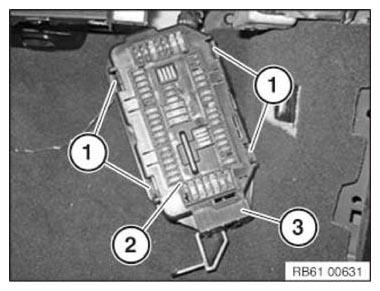

Release catches (1).
Remove power distribution box (2) from bracket (3).
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
- Remove GLOVE BOX
- Remove LOWER INSTRUMENT PANEL TRIM
Release screws (1).
Tightening torque 61 14 1AZ .
Maneuver out power distribution box together with bracket (2) from instrument panel mounting bracket (3).
Maneuver out power distribution box together with bracket (2) in direction of footwell
Unlock and disconnect all plug connections in area (1).
Remove power distribution box together with bracket (2).
Installation note:
Make sure all plug connections are correctly locked.
Replacement:
Release catches (1).
Remove power distribution box (2) from bracket (3).
