61 36... Removing and installing/replacing cut-off relay

WARNING:

High-voltage system - danger to life!

The following points must be strictly observed prior to starting work :

Necessary preliminary tasks:

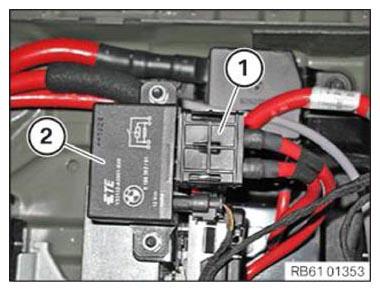

Unclip cover (1) on cut-off relay (2).

Fig 1: Identifying Cut Off Relay And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

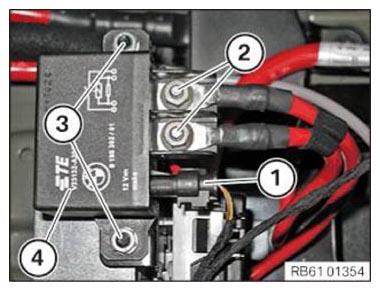

Unlock and disconnect the connector (1).

Unscrew nuts (2).

Tightening torque 61 36 1AZ .

Unscrew nuts (3).

Remove the additional relay (4).

Fig 2: Identifying Additional Relay, Connector And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
