61 61... Overview of windscreen wiper, windscreen washer and headlight washer systems

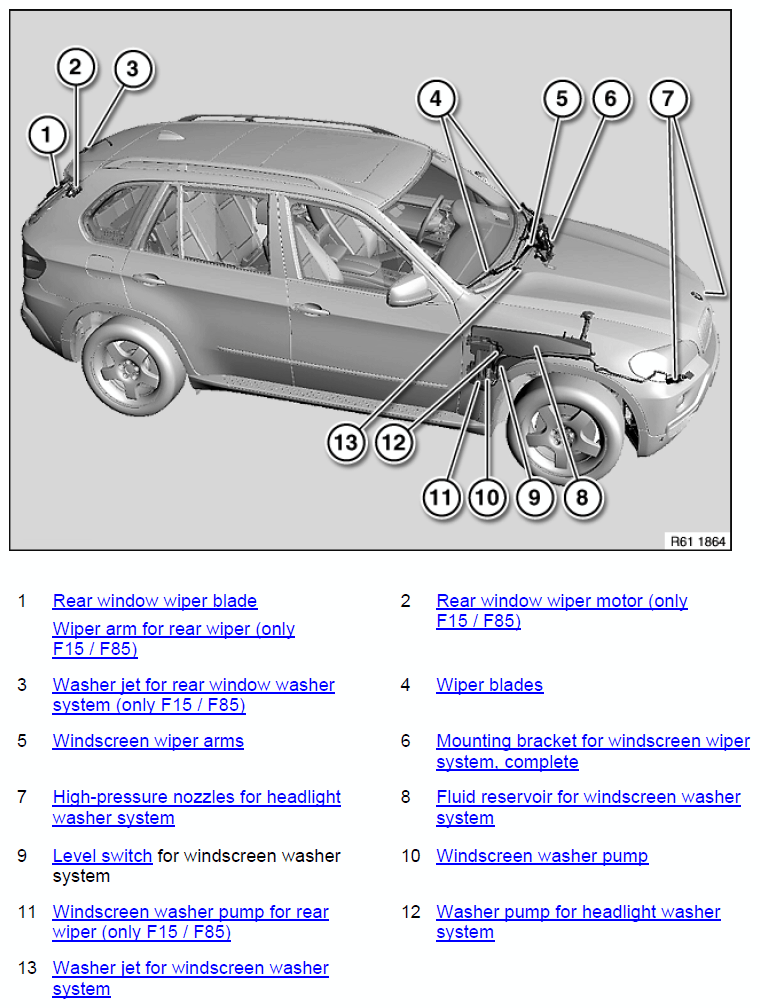

Fig 1: Identifying Windscreen Wiper, Windscreen Washer, Headlight Washer Systems And Related Components
G11110343Courtesy of BMW OF NORTH AMERICA, INC.
