41 00... Body Gap Dimensions General Information

Dimensions in mm

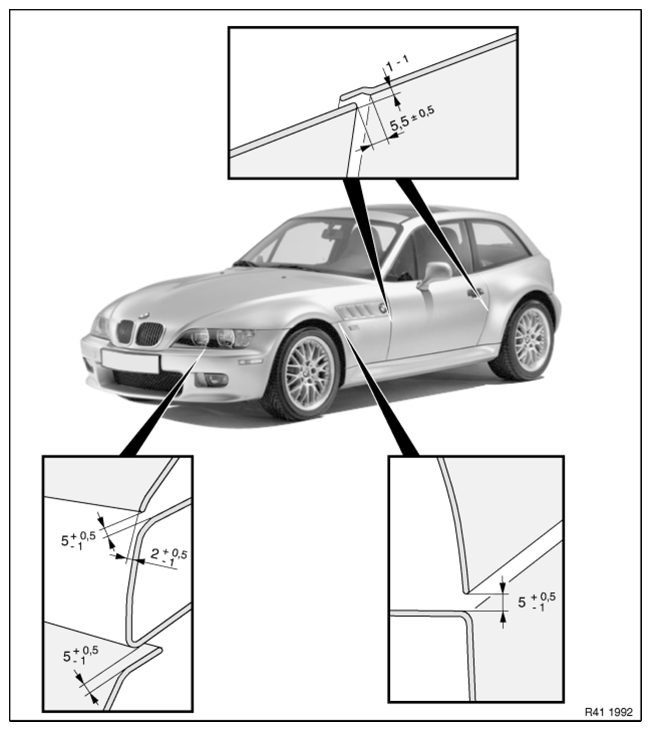

Fig 1: Front Bumper, Front Fender And Front Door Gap Dimensions And Measurement Points (General Information)

Courtesy of BMW OF NORTH AMERICA, INC.

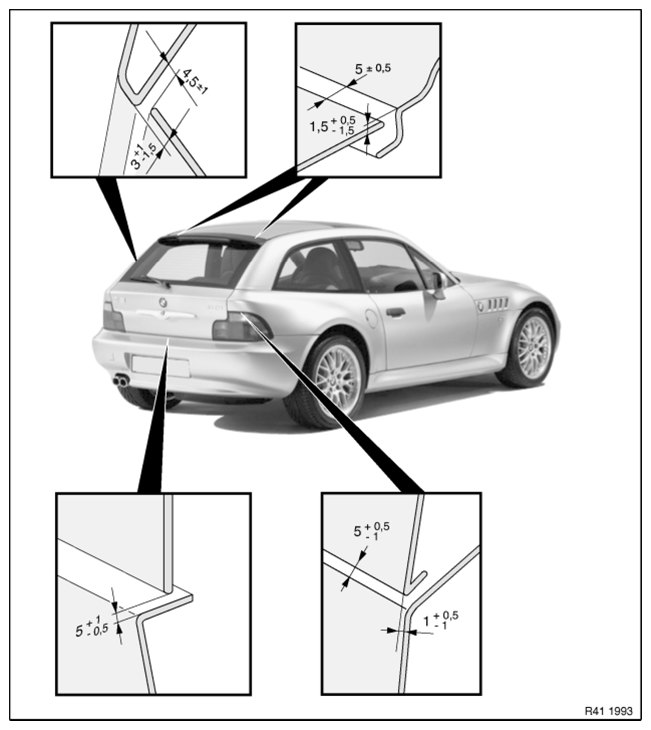

Fig 2: Tailgate And Tail Lamp Gap Dimensions And Measurement Points (General Information)

Courtesy of BMW OF NORTH AMERICA, INC.
