41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

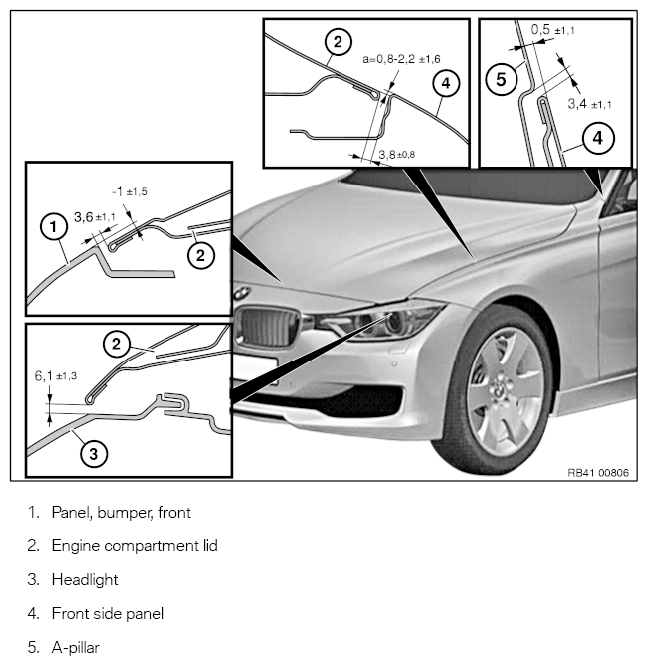

Fig 1: Front Bumper, Hood, Fender And Headlamp Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a increases in size in direction of travel from 0.8 mm at the front to 2.2 ± 1.6 mm.

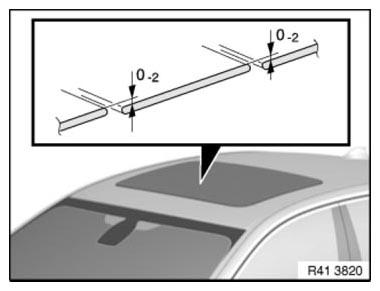

Fig 2: Sunroof Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

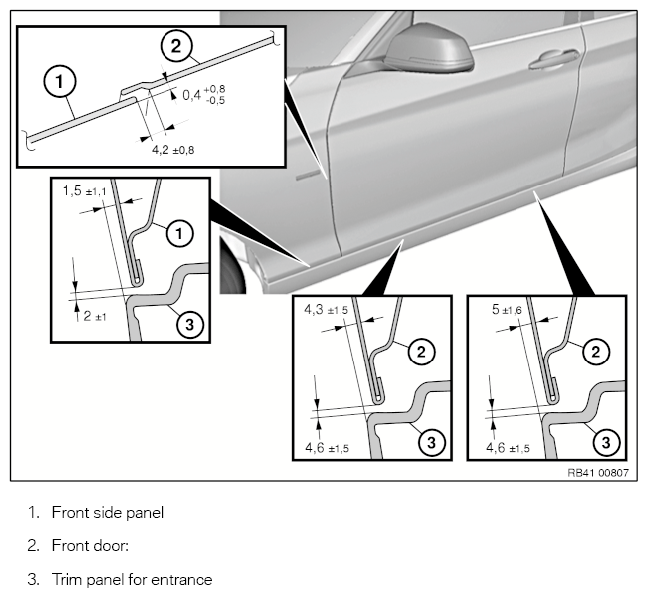

Fig 3: Front Fender, Front Door And Rocker Panel Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

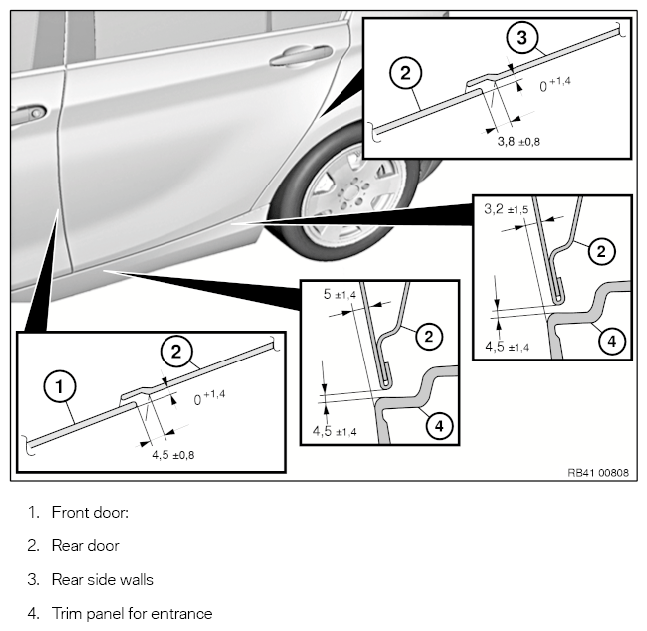

Fig 4: Rear Door, Front Door And Rocker Panel Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

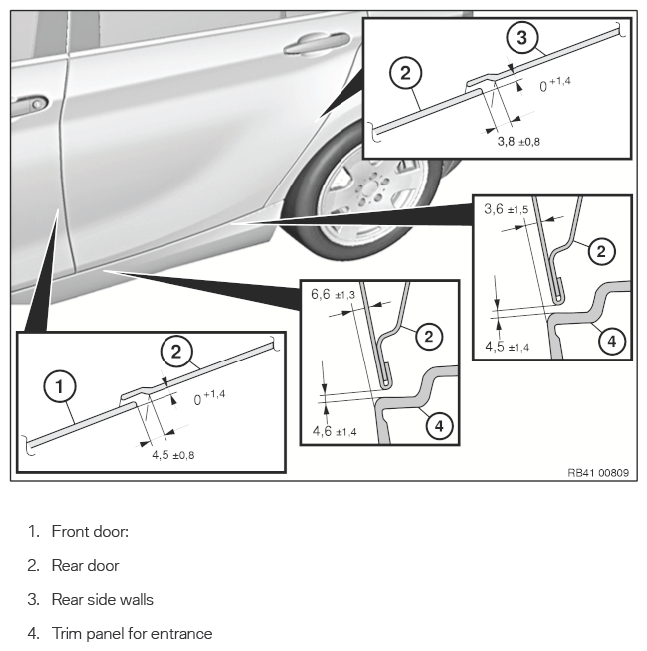

Fig 5: Rear Door, Front Door And Rocker Panel Gap Dimensions And Measurement Points (F35 Only)

Courtesy of BMW OF NORTH AMERICA, INC.

F35 only:

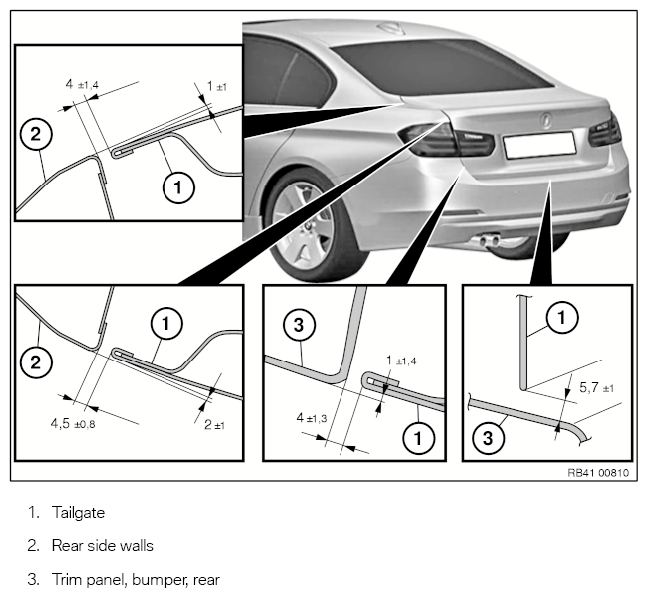

Fig 6: Trunk Lid, Rear Bumper And Quarter Panel Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
