Jump start terminal point: EPS 12 V

The jump start terminal point is located to the right side of the engine compartment beside the spring strut dome. When EPS is used in conjunction with Integral Active Steering, the EPS unit is supplied with power via the jump start terminal point.

This creates a relationship between engine and transmission.

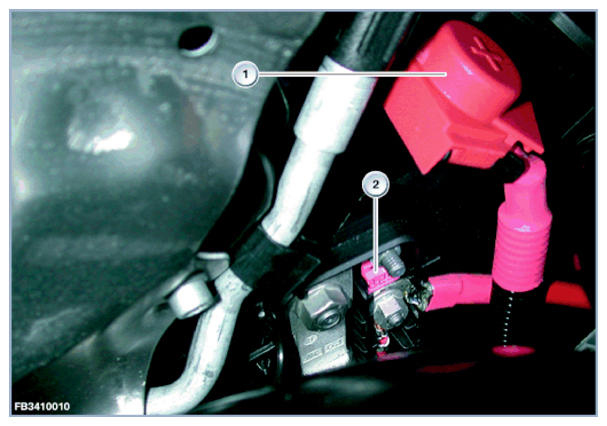

Fig 1: Identifying Jump Start Terminal Point And Fuse

Courtesy of BMW OF NORTH AMERICA, INC.

The voltage supply via the jump start terminal point is assured by means of a safety fuse. This safety fuse can be checked relatively easily, i.e. it is accessible.
