84 10... Replacing emergency battery for Telematic Communication Box (TCB)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTRICAL DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

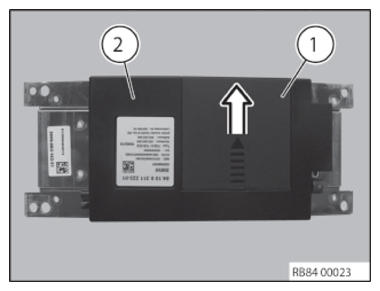

Open lid (1). on TCB (2) in direction of arrow.

Fig 1: Opening TCB Lid

Courtesy of BMW OF NORTH AMERICA, INC.

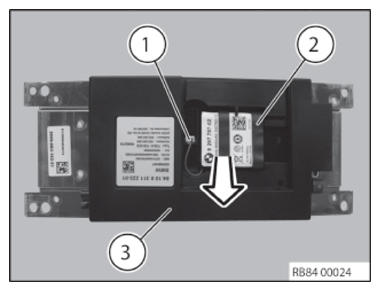

Unfasten plug connection (1) and disconnect.

Remove emergency battery (2) from TCB (3).

Fig 2: Removing Emergency Battery From TCB

Courtesy of BMW OF NORTH AMERICA, INC.
