System functions: Notes

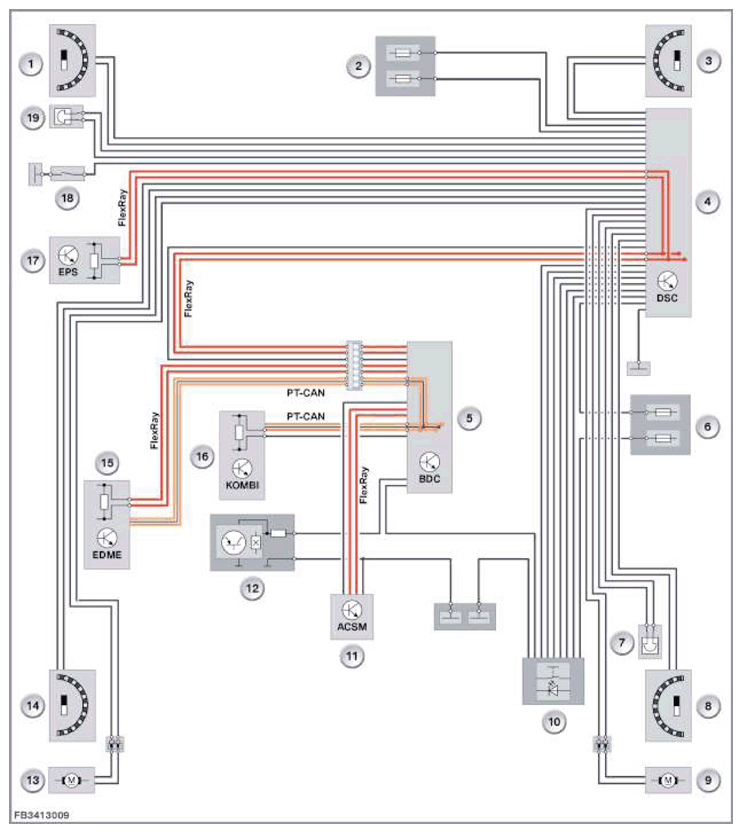

The following illustration shows the functional networking of the Dynamic Stability Control (DSC) using the I01 as an example.
| Item | Explanation |
|---|---|
| 1 | Front left wheel speed sensor |
| 2 | Power distribution box, battery |
| 3 | Front right wheel speed sensor |
| 4 | Dynamic stability control (DSC) |
| 5 | Body Domain Controller (BDC) |
| 6 | Power distribution box Life module |
| 7 | Brake pad wear sensor, rear right |
| 8 | Rear right wheel speed sensor |
| 9 | EMF actuator, rear right |
| 10 | Parking brake button |
| 11 | Crash Safety Module (ACSM) |
| 12 | Brake light switch |
| 13 | EMF actuator, rear left |
| 14 | Rear left wheel speed sensor |
| 15 | Electrical Digital Motor Electronics (EDME) |
| 16 | Instrument panel (KOMBI) |
| 17 | Electromechanical Power Steering (EPS) |
| 18 | Brake fluid level switch |
| 19 | Brake pad wear sensor, front left |
NOTE:
The individual functions are not described in further detail in this service information; they are simply listed.
The following functions are carried out by the DSC:
- DTC: Dynamic Traction Control
- Brake standby through application at an early stage of the brake pads when required
- Dry braking of the brake discs on wet roads
- Fading compensation
- Drive-off assistant
- Cruise control with brake intervention
- ABS: Antilock braking system
- EBV: Electronic brake force distribution
- CBC: Cornering brake control
- MSR: Engine drag torque control
- ASC: Automatic Stability Control
- DSC: Dynamic Stability Control
- DBC: Dynamic Braking Control
- Dynamic emergency braking
The following additional functions that do not belong to driving dynamics control are integrated:
- RPA: Run Flat Indicator
