Interfaces cooling

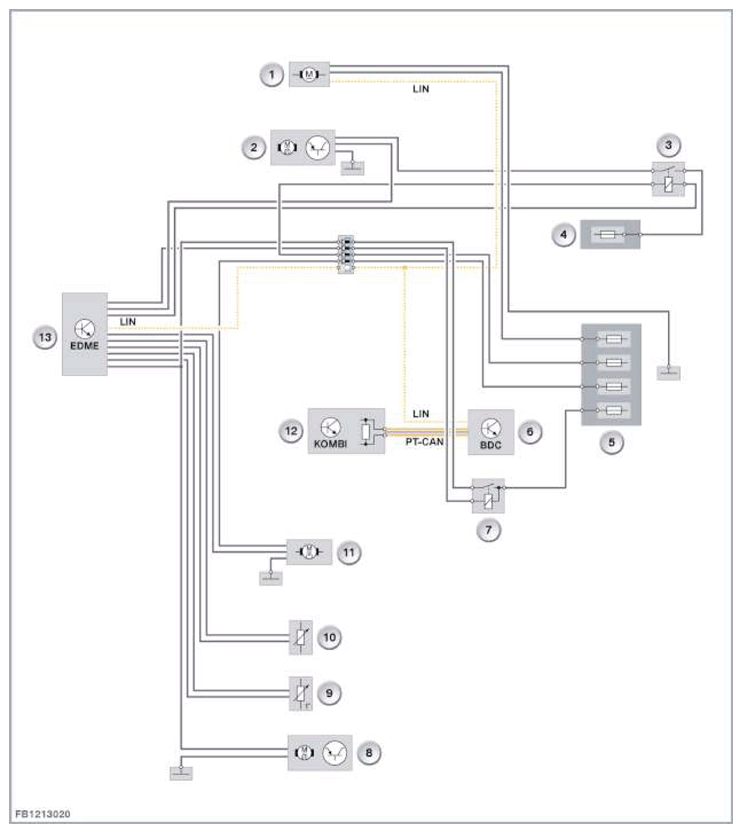

The following system overview shows the interfaces of the cooling using the example of I01 with the range extender:
| Item | Explanation |
|---|---|
| 1 | Radiator blind drive (active air-flap control) |
| 2 | Front electric fan |
| 3 | Electric fan relays |
| 4 | Power distribution box, battery |
| 5 | Power distribution box Life module |
| 6 | Body Domain Controller |
| 7 | Electric fan relay 2 for electric fan of engine compartment |
| 8 | Electric fan of engine compartment |
| 9 | Temperature sensor, engine compartment |
| 10 | Temperature sensor 2 of engine compartment |
| 11 | Electric coolant pump |
| 12 | Instrument panel (KOMBI) |
| 13 | Electrical Digital Motor Electronics (EDME) |
