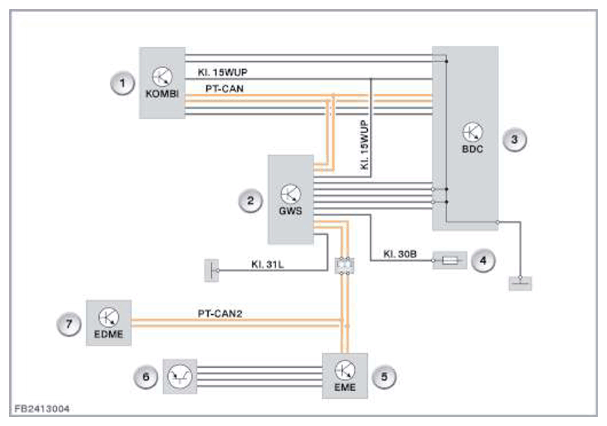

Functional networking

G11149470Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Instrument panel (KOMBI)
2 Gear selector switch (GWS)
3 Body Domain Controller
4 Power distribution box Life module
5 Electrical machine electronics (EME)
6 Parking lock module
7 Electrical Digital Motor Electronics (EDME)
