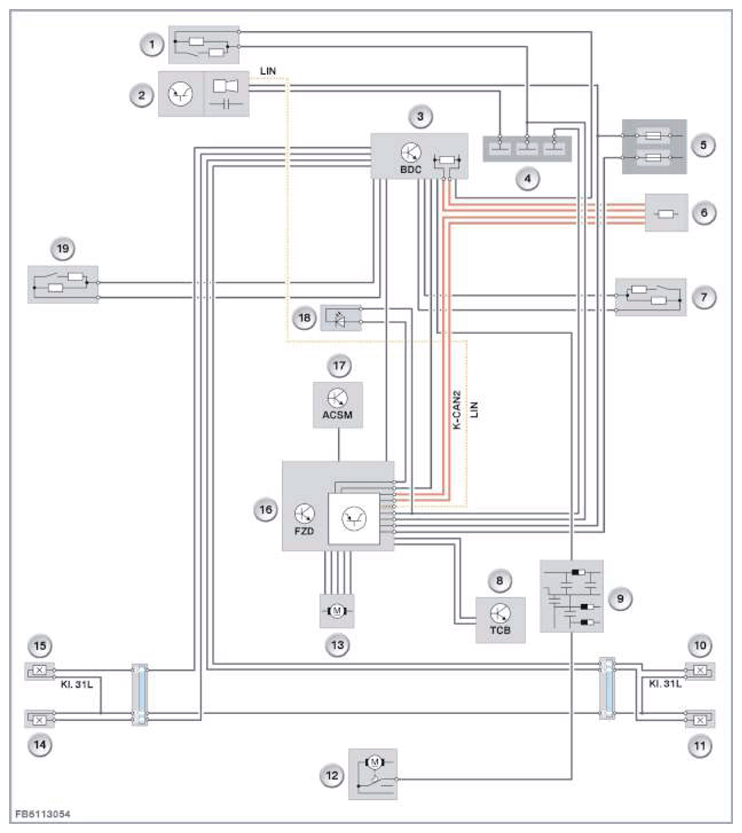

| 1 |
Catch, engine compartment lid |
| 2 |
Siren with tilt alarm sensor |
| 3 |
Body Domain Controller |
| 4 |
Earth connection |
| 5 |
Power distribution box Life module |
| 6 |
CAN terminator |
| 7 |
Front passenger-door lock |
| 8 |
Telematic Communication Box (TCB) |
| 9 |
Interference-suppression filter |
| 10 |
Door lock, rear left, top |
| 11 |
Door lock, rear left, bottom |
| 12 |
Tailgate/tailgate lock |
| 13 |
Slide/tilt sunroof drive unit |
| 14 |
Door lock, rear right, bottom |
| 15 |
Door lock, rear right, top |
| 16 |
Roof function center (FZD) |
| 17 |
Crash Safety Module (ACSM) |
| 18 |
Alarm system LED |
| 19 |
Driver's door lock |
