Functional networking

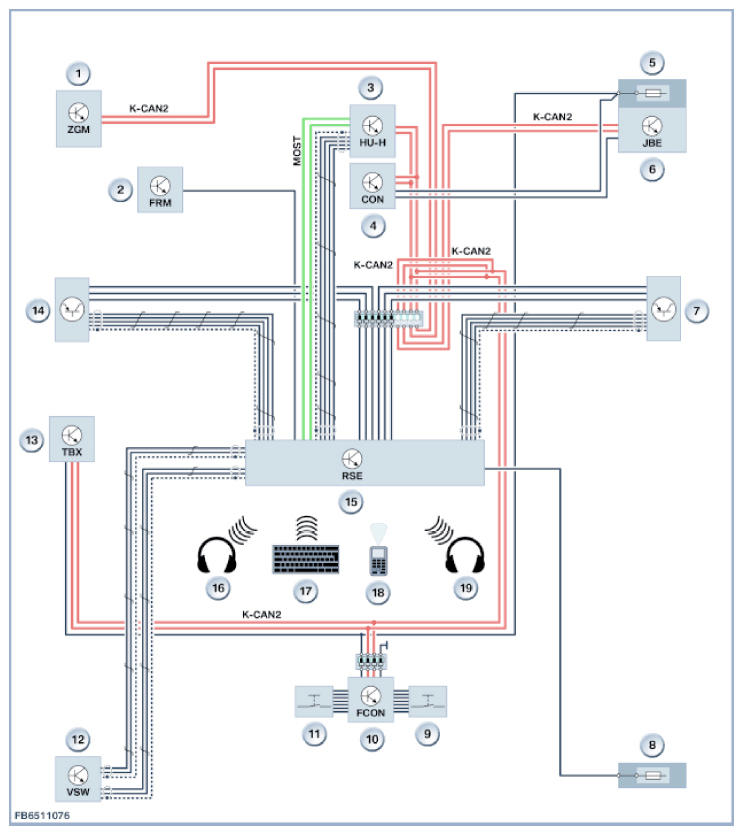

A complex system network with distributed functions residing in additional control units is needed for implementation. The following illustrations show the functional networking on the example of rear seat entertainment.
The high version of the rear seat entertainment is shown in the example F01 as of 07/2012.
| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Footwell module (FRM) |
| 3 | Head unit High (HU-H) |
| 4 | Controller (CON) |
| 5 | Power distribution box (junction box) fuse |
| 6 | Junction Box Electronics (JBE) |
| 7 | Rear compartment display 2 |
| 8 | Power distribution box, rear |
| 9 | Right operating facility |
| 10 | Rear-compartment controller (FCON) |
| 11 | Left operating facility |
| 12 | Video switch (VSW) |
| 13 | Touchbox (TBX) |
| 14 | Rear compartment display |
| 15 | Rear seat entertainment (RSE) |
| 16 | Headphones, left |
| 17 | Keyboard |
| 18 | Remote key |
| 19 | Headphones, right |
