Functional networking
A complex system network with distributed functions in other control units is necessary for the implementation of the traffic jam assistant system.

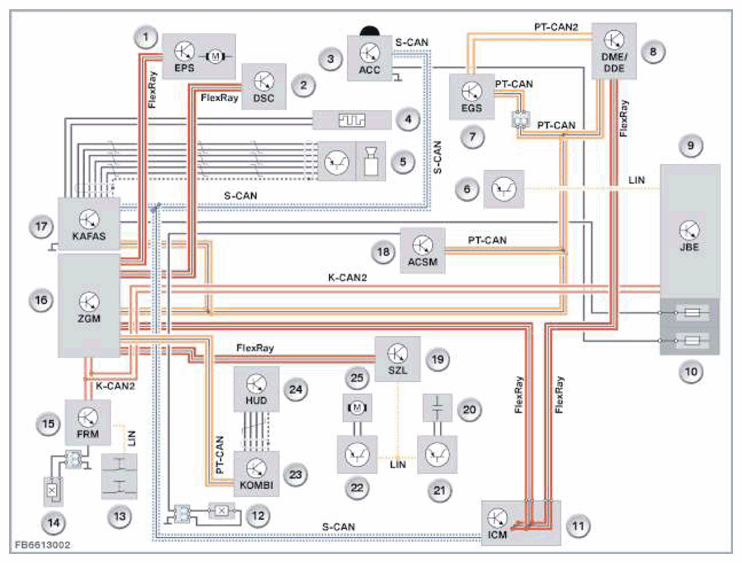

The following illustration shows the functional networking of the traffic jam assistant system using the example F10.
| Item | Explanation |
|---|---|
| 1 | Electromechanical Power Steering (EPS) |
| 2 | Dynamic stability control (DSC) |
| 3 | ACC control unit with ACC sensor |
| 4 | Camera-based driver support systems camera heating |
| 5 | Camera-based driver support systems camera |
| 6 | Rain-light-solar-condensation sensor |
| 7 | Electronic transmission control (EGS) |
| 8 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 9 | Junction Box Electronics (JBE) |
| 10 | Power distributor in junction box |
| 11 | Integrated chassis management (ICM) |
| 12 | Driver's seat belt buckle contact |
| 13 | Assist systems operating facility |
| 14 | Driver's door lock |
| 15 | Footwell module (FRM) |
| 16 | Central gateway module (ZGM) |
| 17 | Camera-based driver support systems (KAFAS) |
| 18 | Crash Safety Module (ACSM) |
| 19 | Steering column switch center (SZL) |
| 20 | Touch detection sensor |
| 21 | Electronics of touch detection |
| 22 | Electronic steering wheel module |
| 23 | Instrument panel (KOMBI) |
| 24 | Head-Up Display (HUD) |
| 25 | Vibration actuator |

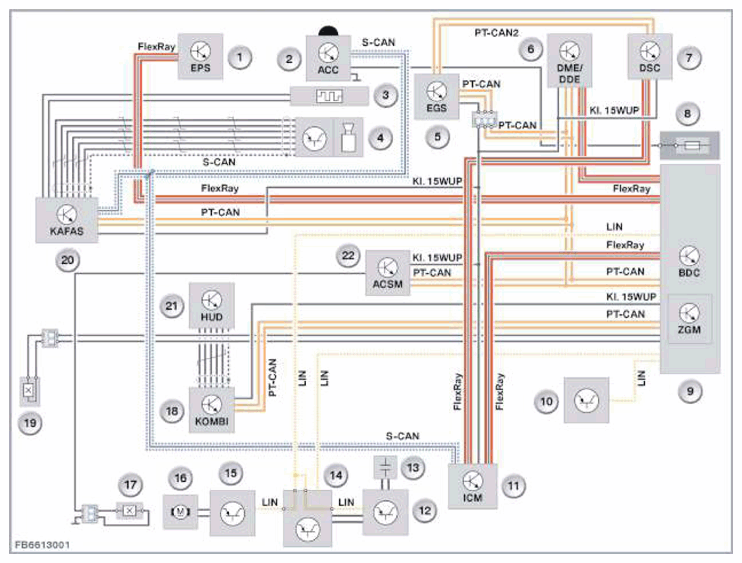

The following illustration shows the functional networking of the traffic jam assistant system using the example F15.
| Item | Explanation |
|---|---|
| 1 | Electromechanical Power Steering (EPS) |
| 2 | ACC control unit with ACC sensor |
| 3 | Camera-based driver support systems camera heating |
| 4 | Camera-based driver support systems camera |
| 5 | Electronic transmission control (EGS) |
| 6 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 7 | Dynamic stability control (DSC) |
| 8 | Front fuse and relay module |
| 9 | Body Domain Controller (BDC), central gateway module (ZGM) integrated as independent control unit |
| 10 | Rain-light-solar-condensation sensor |
| 11 | Integrated chassis management (ICM) |
| 12 | Electronics of touch detection |
| 13 | Touch detection sensor |
| 14 | Steering column switch cluster |
| 15 | Electronic steering wheel module |
| 16 | Vibration actuator |
| 17 | Driver's seat belt buckle contact |
| 18 | Instrument panel (KOMBI) |
| 19 | Driver's door lock |
| 20 | Camera-based driver support systems (KAFAS) |
| 21 | Head-Up Display (HUD) |
| 22 | Crash Safety Module (ACSM) |

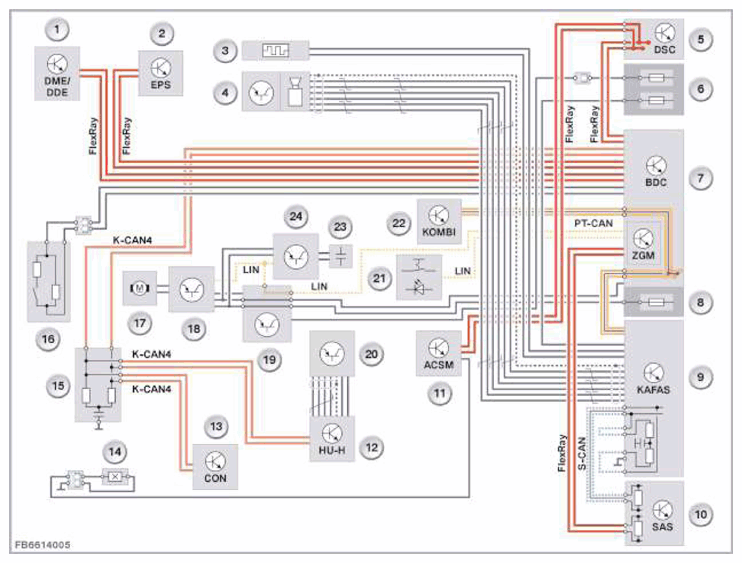

The following illustration shows the functional networking of the traffic jam assistant system using the example F45.
| Item | Explanation |
|---|---|
| 1 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 2 | Electromechanical Power Steering (EPS) |
| 3 | Camera-based driver support systems camera heating |
| 4 | Camera-based driver support systems camera |
| 5 | Dynamic stability control (DSC) |
| 6 | Front fuse and relay module |
| 7 | Body Domain Controller (BDC), central gateway module (ZGM) integrated as independent control unit |
| 8 | Power distribution box in the Body Domain Controller (BDC) |
| 9 | Camera-based driver support systems (KAFAS) |
| 10 | Optional equipment system (SAS) |
| 11 | Crash Safety Module (ACSM) |
| 12 | Head unit High (HU-H) |
| 13 | Controller (CON) |
| 14 | Driver's seat belt buckle contact |
| 15 | K-CAN4 star coupler |
| 16 | Driver's door lock |
| 17 | Vibration actuator |
| 18 | Electronic steering wheel module |
| 19 | Steering column switch cluster |
| 20 | Central information display |
| 21 | Hazard warning switch |
| 22 | Instrument panel (KOMBI) |
| 23 | Touch detection sensor |
| 24 | Electronics of touch detection |
