00 00... Greasing positive battery connection point

Necessary preliminary tasks:

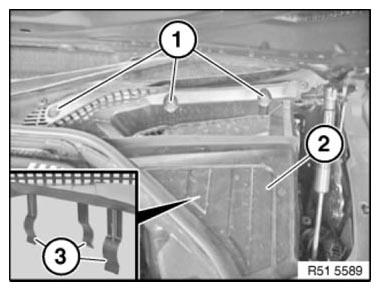

Lift expanding rivets (1) out of cover (2) on right.

Remove cover (2).

Installation note:

If necessary, replace damaged expanding rivets.

Make sure holders (3) are correctly seated.

Fig 1: Identifying Expanding Rivets Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

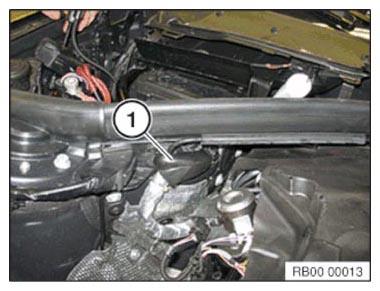

Pull out protective cap (1).

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

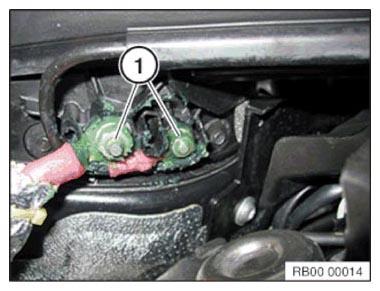

Coat B+ terminal (1) with terminal grease.

NOTE: Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.

Sourcing reference: obtainable from BMW Parts Department.

Contact-protection greaseKF1

Part number: 83 19 2 295 229

Fig 3: Coating B+ Terminal With Terminal Grease
Courtesy of BMW OF NORTH AMERICA, INC.

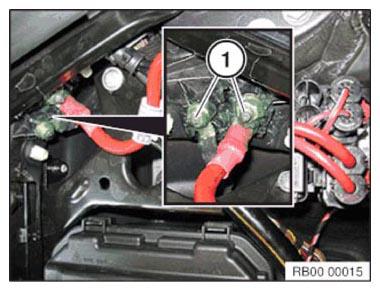

Coat B+ terminal (1) with terminal grease.

NOTE: Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.

Sourcing reference: obtainable from BMW Parts Department.

Contact-protection greaseKF1

Part number: 83 19 2 295 229

Fig 4: Coating B+ Terminal With Terminal Grease
Courtesy of BMW OF NORTH AMERICA, INC.

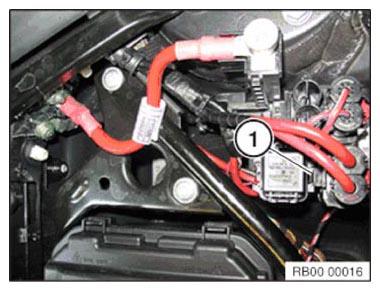

Take out the relay holder (1) and set to one side.

Fig 5: Identifying Relay Holder

Courtesy of BMW OF NORTH AMERICA, INC.

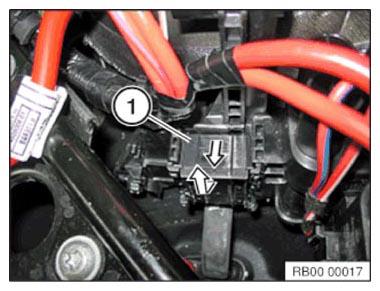

Pull out protective cap (1) in direction of arrow.

Fig 6: Pulling Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
