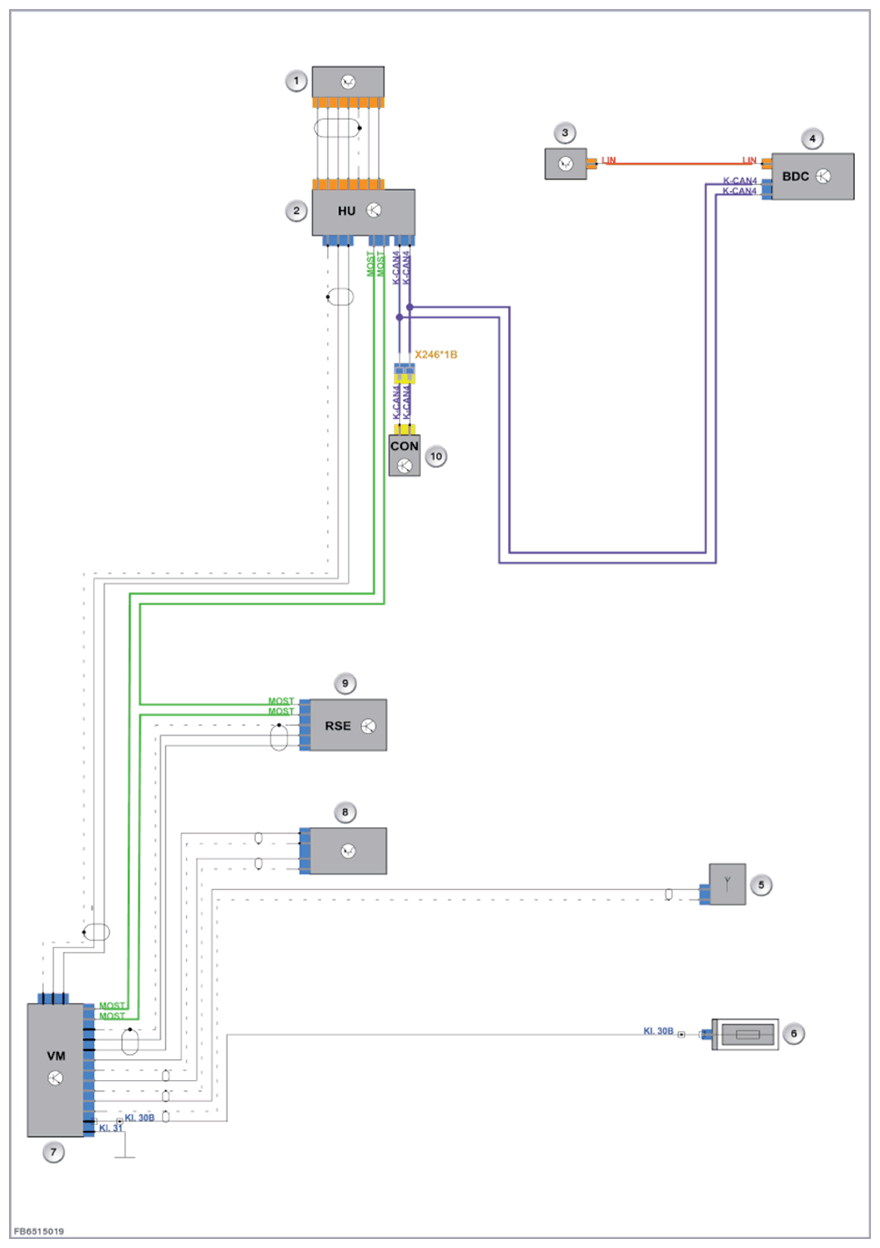

Functional networking
The video module (VM) is connected to the vehicle electrical system and the MOST via a 12-pin plug connection with a MOST interface. The video module transmits the picture signals via CVBS lines to the connected devices (e.g. head unit and Rear Seat Entertainment). The rear power distribution box supplies the video module with terminal 30B.
| Item | Explanation |
|---|---|
| 1 | Central information display |
| 2 | Headunit (HU) |
| 3 | Control unit for audio mode/air conditioning |
| 4 | Body Domain Controller (BDC) |
| 5 | TV aerial 3 |
| 6 | Power distribution box, right rear |
| 7 | Video module |
| 8 | Diversity aerial |
| 9 | Rear seat entertainment (RSE) |
| 10 | Controller (CON) |
