61 61... Overview of windscreen wiper and cleaning system
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
61 61... Overview of windscreen wiper and cleaning system

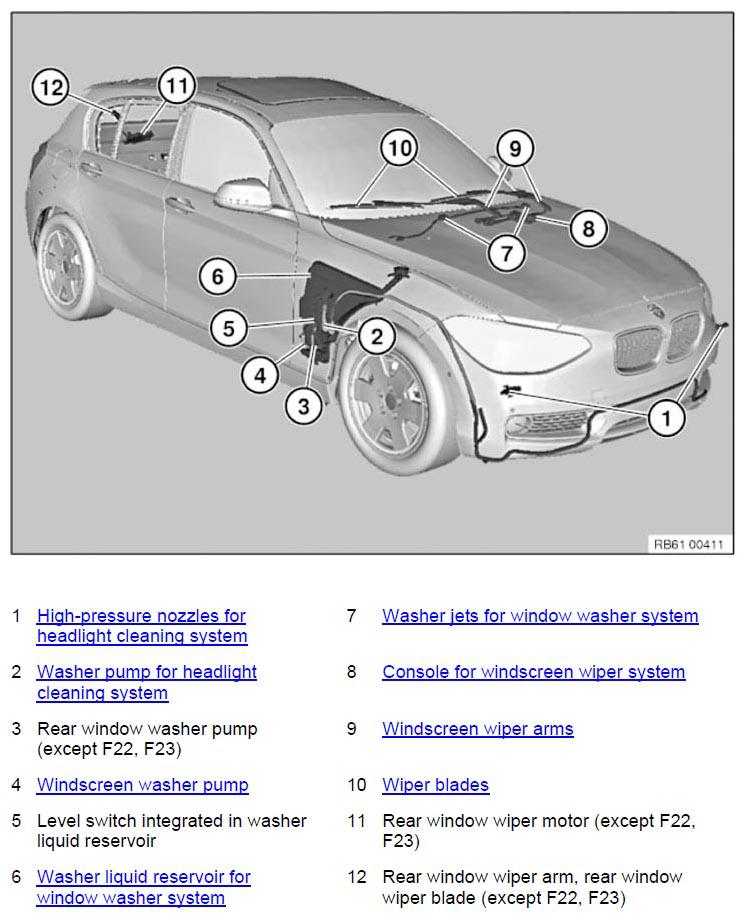

Fig 1: Overview Of Windscreen Wiper And Cleaning System
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
