Removing and installing radio and A/C control panel

Special tools required:

• 00 9 340

Attention!

Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Attention!

Carry out installation in a dust-free workshop area only.

To avoid damage, do not touch or dirty the display area.

Necessary preliminary tasks:

• Remove DECORATIVE STRIP ON DASHBOARD IN MIDDLE .

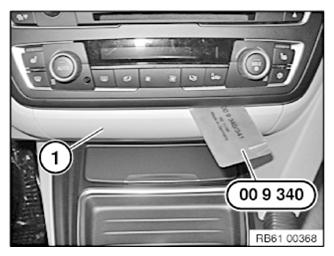

Insert special tool 00 9 340 as illustrated.

Carefully lever out trim (1) towards front and unclip.

Courtesy of BMW OF NORTH AMERICA, INC.

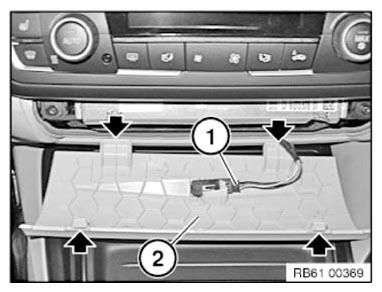

Unfasten plug connection (1) and disconnect.

Remove cover (2).

Installation note:

Retaining lugs and guides must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

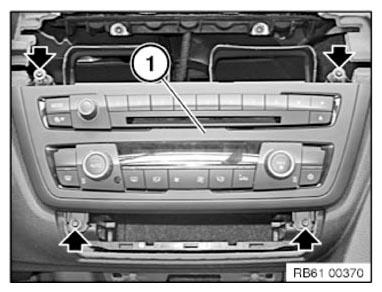

Release all screws (arrow).

Pull control panel (1) forwards slightly.

Unlock associated plug connections and disconnect.

Remove the control panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.
