Removing and installing/replacing USB audio interface connecting socket

Necessary preliminary tasks:

• Remove INSERT IN CENTER ARMREST STORAGE COMPARTMENT .

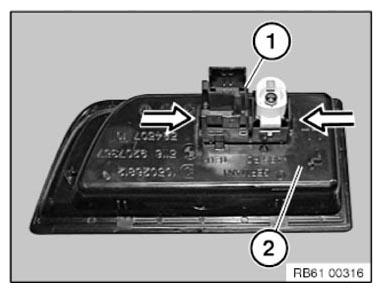

Release connecting socket (1) from latch mechanism on both sides.

Remove connecting socket from storage compartment (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Connecting socket latch mechanisms (1) must not be damaged or missing
• Make sure connecting socket (1) is correctly fitted in storage compartment

Courtesy of BMW OF NORTH AMERICA, INC.
