Removing and installing/replacing center console operating facility (Except M4 CS)

Necessary preliminary tasks:

Version with manual gearbox only:

Version with automatic transmissions only:

IMPORTANT: Risk of damage !
Center console operating facility must not be pried out from the outside.

NOTE: Graphic shows example of F20 with automatic transmission.

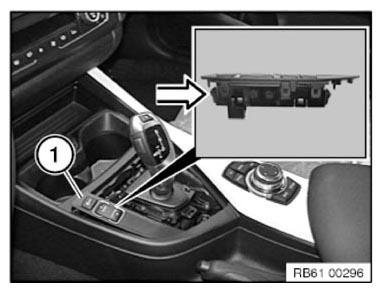

Reach under front section of operating facility (1).
Press front latch mechanism in direction of arrow and simultaneously raise operating facility (1) towards top.
Disconnect associated plug connection and remove operating facility (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

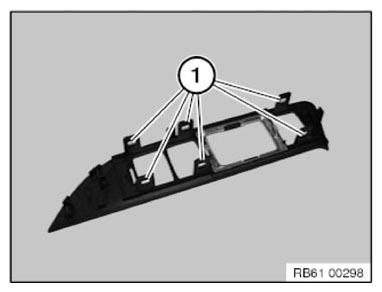

Latch mechanisms (1) must not be damaged or missing.

Make sure operating facility is correctly fitted in center console.

Courtesy of BMW OF NORTH AMERICA, INC.

In case of replacement, remount operating unit cover:

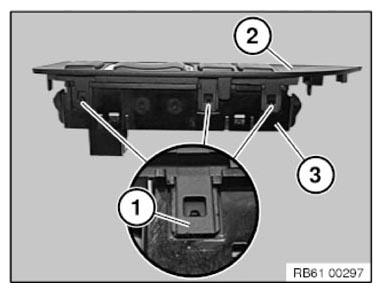

Release latch mechanism (1) and remount cover (2), depending on equipment.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

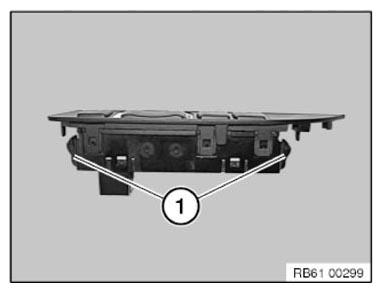

Latch mechanisms (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
