Removing and installing/replacing controller
Attention!
Risk of damage!
The button for the controller must not be removed!
Necessary preliminary tasks:
- Remove DECORATIVE TRIM ON CENTER CONSOLE .

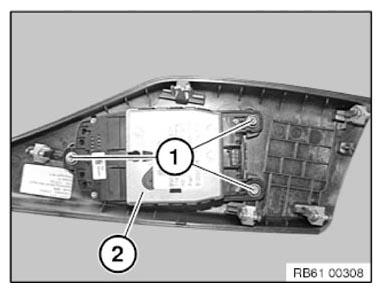

Release screws (1).
Tightening torque 61 31 2AZ .
Remove controller (2).
Replacement:
Carry out PROGRAMMING/ENCODING .
