Removing and installing/replacing Convertible top module (M4 Convertible)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

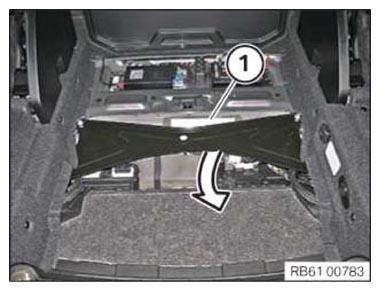

Remove luggage compartment floor trim panel (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull convertible-top module (1) in direction of arrow out of holder.

Courtesy of BMW OF NORTH AMERICA, INC.

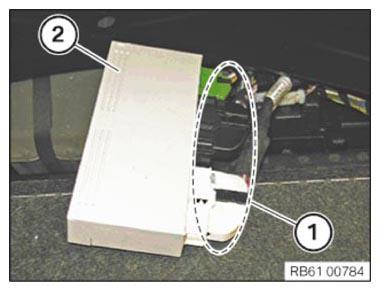

Unlock plug connections (1) and disconnect.

Remove convertible-top module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
