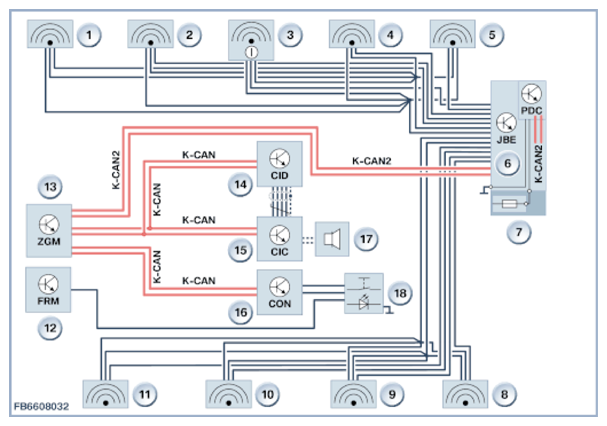

| 1 |
Ultrasonic sensor, front left side |
| 2 |
Ultrasonic sensor, front outer left |
| 3 |
Ultrasonic sensor, front center (only F01, F02, F03, F04) |
| 4 |
Ultrasonic sensor, front outer right |
| 5 |
Ultrasonic sensor, front right side |
| 6 |
Junction Box Electronics (JBE) |
| 7 |
Power distribution box |
| 8 |
Ultrasonic sensor, rear outer right |
| 9 |
Ultrasonic sensor, rear center right |
| 10 |
Ultrasonic sensor, rear center left |
| 11 |
Ultrasonic sensor, rear outer left |
| 12 |
Footwell module (FRM) |
| 13 |
Central gateway module (ZGM) |
| 14 |
Central information display (CID) |
| 15 |
Car information computer (CIC) |
| 16 |
Controller (CON) |
| 17 |
Acoustic signal output |
| 18 |
Center console operating facility |
