Engine speed variations

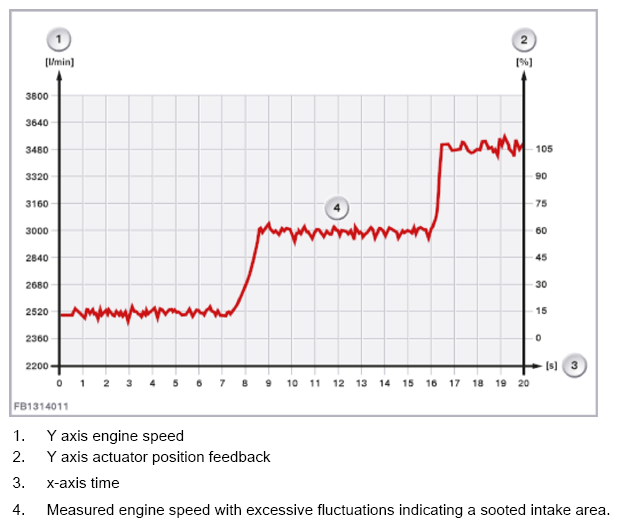

Fig 1: Engine Speed Variations Graph
G09908287Courtesy of BMW OF NORTH AMERICA, INC.
  1. Y axis engine speed
  2. Y axis actuator position feedback
  3. x-axis time
  4. Measured engine speed with excessive fluctuations indicating a sooted intake area.
