Engine S63 TOP: Notes

The engine S63 TOP is used for the first time in the F10M. The engine S63 TOP is a new innovation based on the engine S63.

The SAP designation is S63B44T0.

The S thereby represents the engine development of M GmbH.
The number 63 describes the engine type V8.
The B references the petrol engine and petrol fuel.
The number 44 provides information about the displacement of 4395 cm³ .
T0 marks the technical update compared to the base engine.

The development goal was to increase the dynamic for the use in the new M5 and M6 simultaneously drop the fuel consumption. This was achieved through consequent dethrottling and the application of the Turbo-Valvetronic direct injection (TVDI) technology. These are already known in the engines N20 and N55 in use.

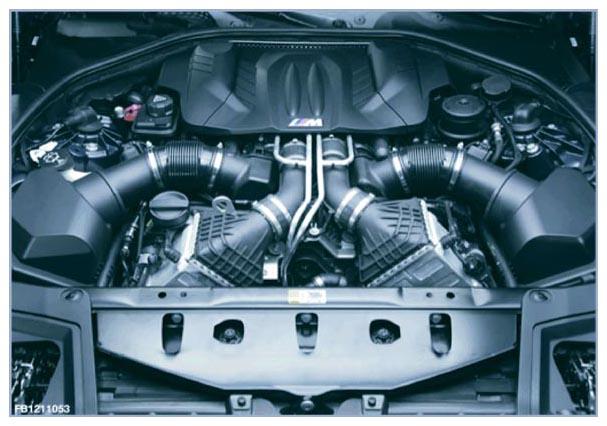

The graphic below shows the installation position of the engine S63 TOP in the F10M.

Fig 1: Identifying Engine S63 Top

Courtesy of BMW OF NORTH AMERICA, INC.

The newly developed engine S63 TOP is characterized by the following features:

V8 Petrol engine with twin turbo twin scroll Valvetronic direct injection (TVDI) and 412 kW (560 PS)
Torque of 680 Nm from 1500 rpm
93.7 kW power output per liter

TECHNICAL DATA SPECIFICATION

Design	V8 with Turbo-Valvetronic direct injection (TVDI)
Firing order	1-5-4-8-6-3-7-2
Cutoff speed	7200 rpm
Compression ratio	10, 0: 1
Charging	2 Exhaust turbocharger with twin-scroll technology
Maximum charging pressure	up to 0.9 bar
Valves per cylinder	4
Fuel rating	98 RON
Fuel	95 - 98 RON
Fuel consumption	9.9 l per 100 km
Exhaust emission standards, European version	EURO 5
Pollutant emission	232 g CO₂ per km

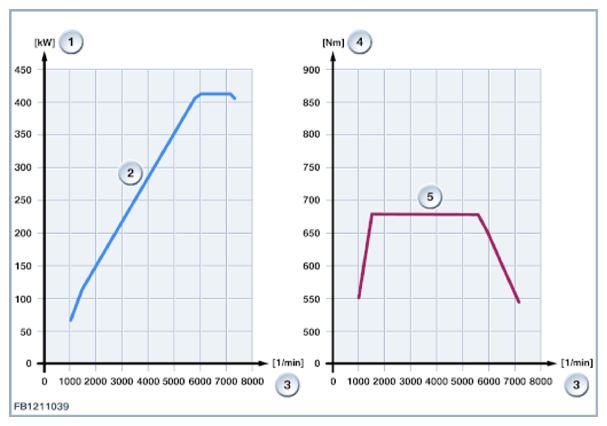

Full load diagram S63B44T0

Fig 2: Engine S63 Top Characteristic Curve (S63B44T0)

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Power output in kilowatt
2	Performance curve, engine S63 TOP
3	Revolutions per minute (rpm)
4	Torque in Newton meters
5	Torque curve, engine S63 TOP
