25 11... Overview Of Gearshift Mechanism For Manual Transmission

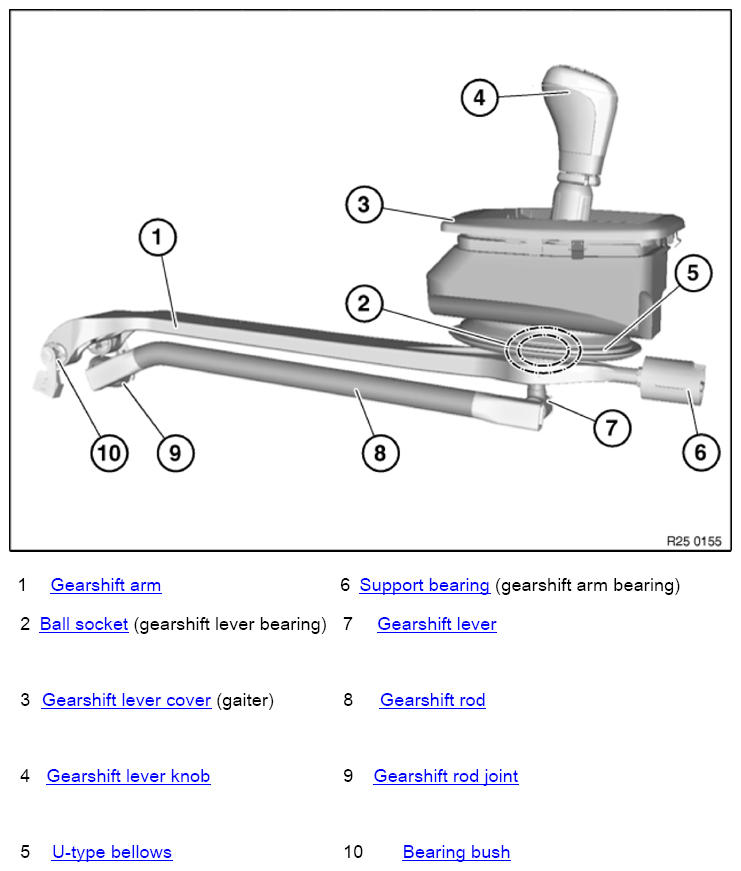

Fig 1: Overview Of Gearshift Mechanism For Manual Transmission
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
