32 00... Additional work for camber correction
NOTE:
The camber adjustment is performed only with the replacement of the SWIVEL BEARING
. There are 3 different swivel bearings for this!
Attention!
Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!
NOTE:
The swivel bearing may only be replaced if the camber is outside the specified tolerance after toe adjustment.
Necessary preliminary work:
Adjust TOE-IN .
Check camber values; if necessary, replace installed SWIVEL BEARING with swivel bearing for camber correction.
NOTE:

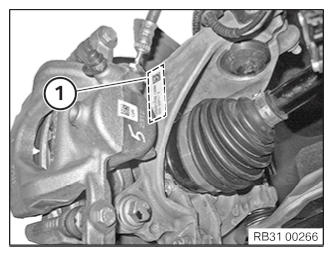

Swivel bearings for camber correction can only be identified by reference to the BMW part number (1).
Also refer to the Applicable BMW Parts Catalogue!
| Version | BMW part number |
|---|---|
| Standard | Left: 6 870 837 or 6 876 645/ right: 6 870 838 or 6 876 646 |
| + 30' | Left: 6 860 991 or 6 876 851/ right: 6 860 992 or 6 876 852 |
| - 30' | Left: 6 860 993 or 6 876 853/ right: 6 860 994 or 6 876 854 |
These swivel bearings for camber correction are used to correct the camber values by 30 min. To be used only if the tolerance values are exceeded or undershot!
After Installation note:
- Check the directional stability of car; if necessary, repeat TOE-IN adjustment.
