41 00... Body Gap Dimensions

The dimensions specified are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimensions are specified for components/gaps which cannot be adjusted.

Dimensions in mm:

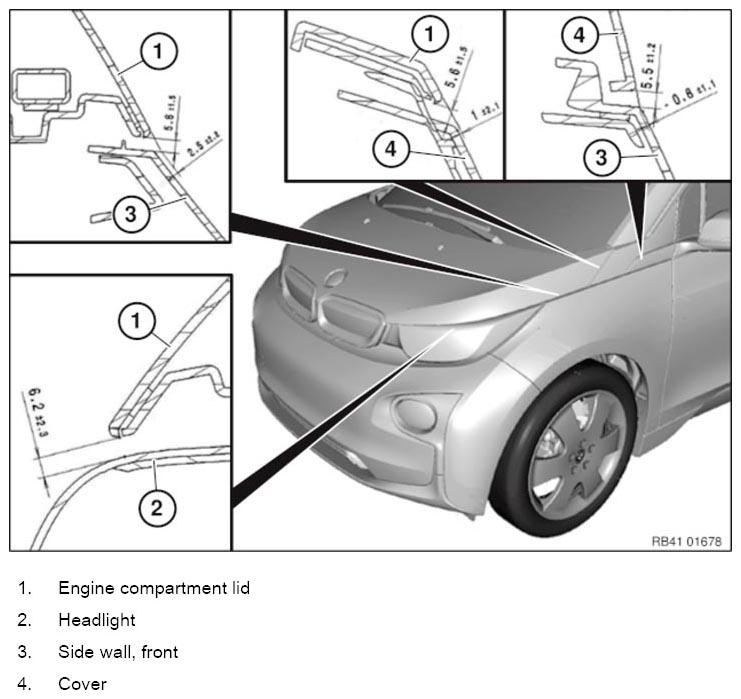

Fig 1: Hood, Headlamp, Front Fender And Cover Body Gap Dimensions And Measurement Points

G11145918

Courtesy of BMW OF NORTH AMERICA, INC.

No range of adjustment between front side panel and front bumper panel.

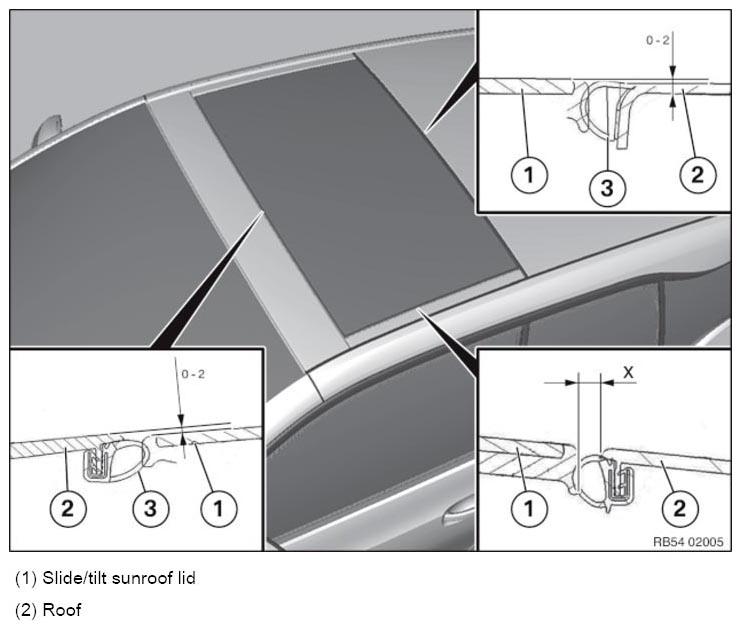

Fig 2: Moonroof And Roof Body Gap Dimensions And Measurement Points

G11145919

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Measure front and rear height adjustment over the entire cover width.

Height over the entire cover width must lie within tolerance.

The lateral distance between the slide/tilt sunroof lid and the roof must be approximately the same on the left and right.

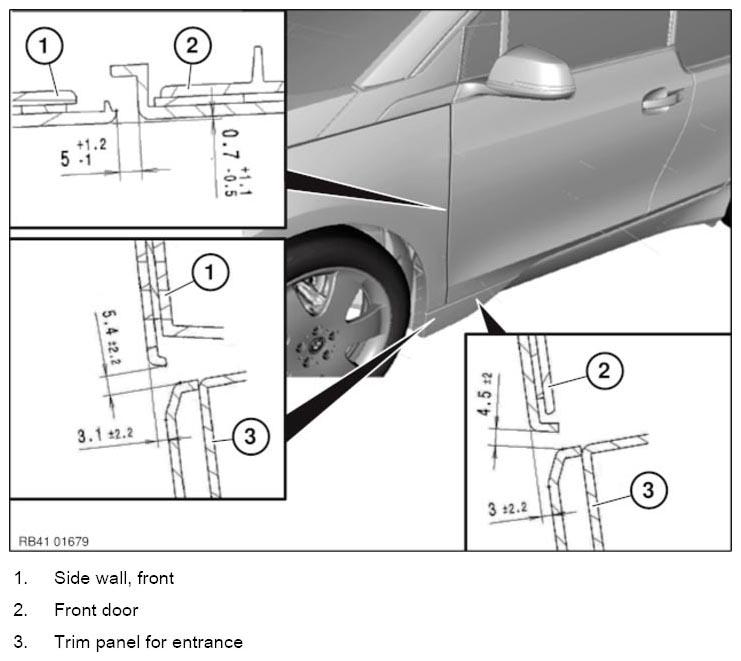

Fig 3: Front Fender, Front Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G11145920

Courtesy of BMW OF NORTH AMERICA, INC.

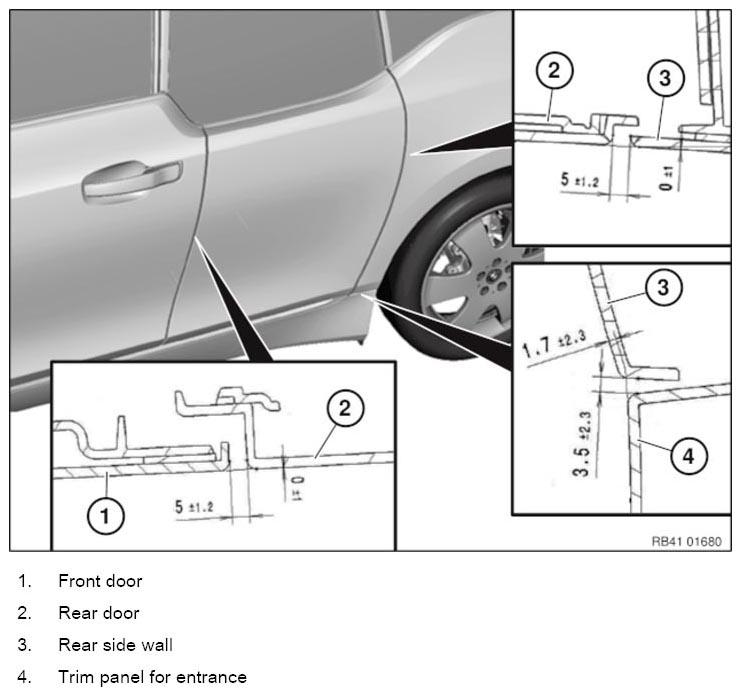

Fig 4: Front Door, Rear Door, Rear Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

G11145921

Courtesy of BMW OF NORTH AMERICA, INC.

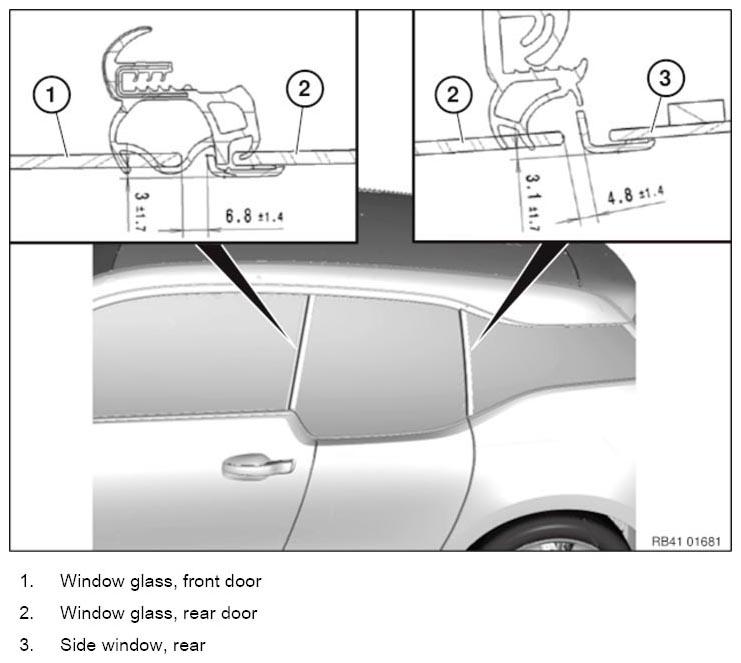

Fig 5: Front Door Glass, Rear Door Glass And Quarter Glass Body Gap Dimensions And Measurement Points

G11145922

Courtesy of BMW OF NORTH AMERICA, INC.

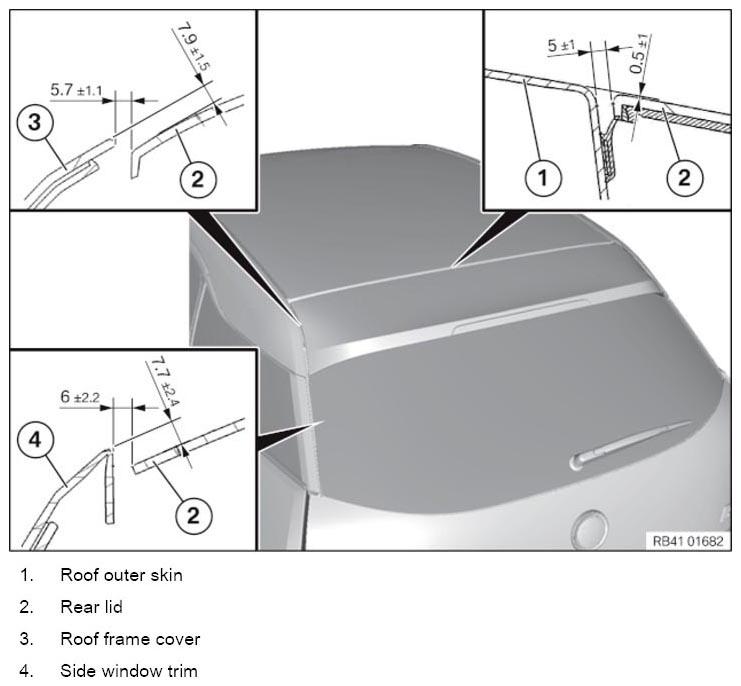

Fig 6: Roof, Tailgate, Roof Frame Cover And Side Window Trim Body Gap Dimensions And Measurement Points

G11145923

Courtesy of BMW OF NORTH AMERICA, INC.

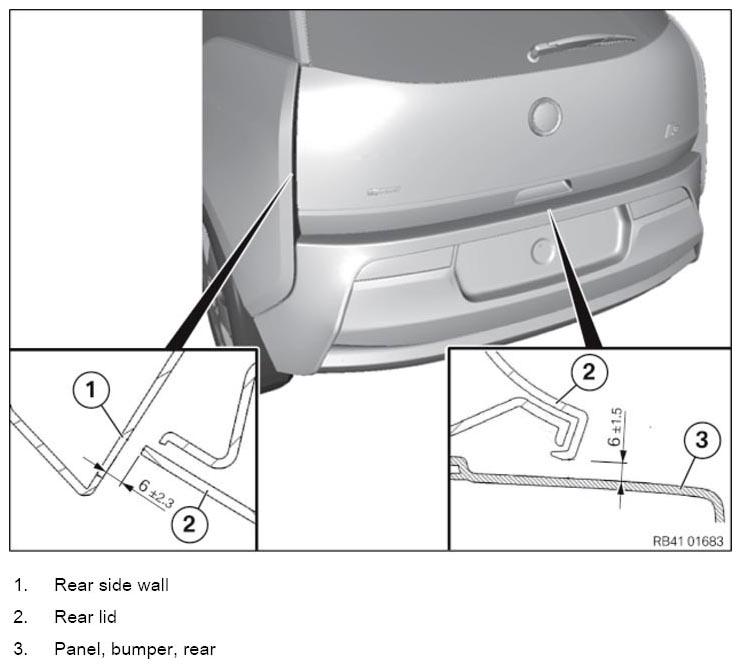

Fig 7: Tailgate, Rear Bumper And Quarter Panel Body Gap Dimensions And Measurement Points

G11145924

Courtesy of BMW OF NORTH AMERICA, INC.

No range of adjustment between rear side panel and rear bumper panel.
