32 31 090 Removing and refitting/replacing steering column

Necessary preliminary tasks:

• Move steering column into "extended" position.
• Remove STEERING COLUMN SHROUD , bottom.
• Remove TRIM PANEL FOR PEDAL MECHANISM .
• Remove STEERING COLUMN SWITCH CLUSTER .
• Replacement only: Remove GEAR SELECTOR SWITCH .

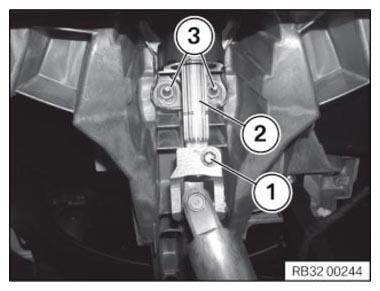

Release clamping bolt (1) on steering shaft at steering column (2), bottom.

Tightening torque 32 31 4AZ .

Undo nuts (3) at bottom of steering column.

Tightening torque 32 31 1AZ .

Fig 1: Identifying Clamping Bolt, Steering Column And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure steering column against falling out.

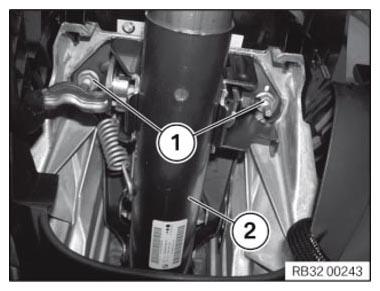

Undo nuts (1) at top of steering column.

Tightening torque 32 31 1AZ .

Fig 2: Identifying Steering Column Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Turn steering wheel in both directions to the limit position. The airbag indicator light must not light up!
