61 13... Unlocking and disconnecting different plug connections

NOTE: The information describes unlocking and disconnecting different types of plug connections.
Differences in the details of the size and shape of the plug connections are possible.

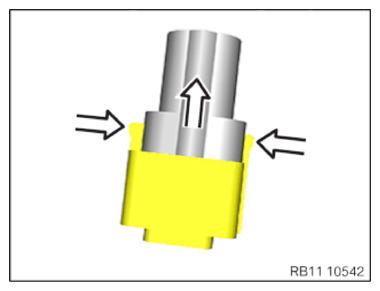

Press lock and open release clip in direction of arrow.
Disconnect plug connection.

Fig 1: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

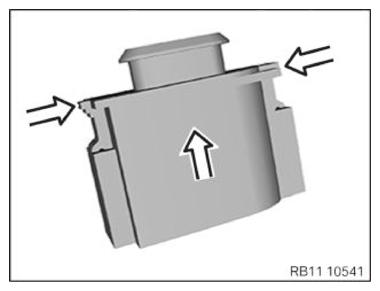

Press lock and open release clip in direction of arrow.
Disconnect plug connection.

Fig 2: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

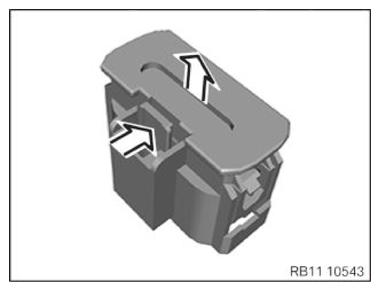

Open release clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

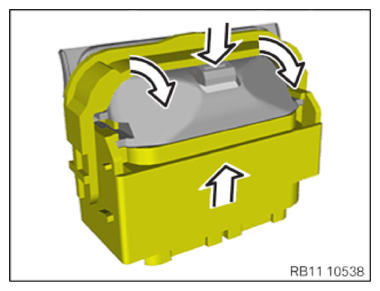

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

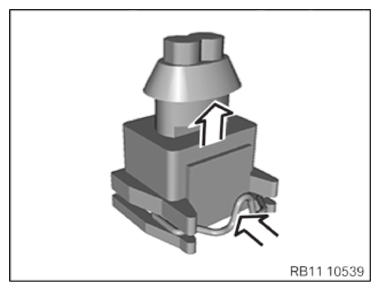

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

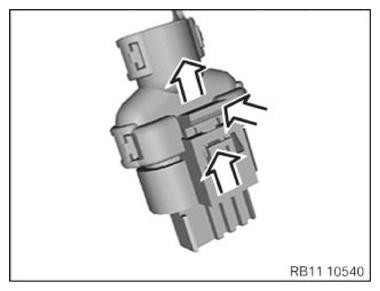

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 10: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 11: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock on both sides and detach plug connection.

Fig 12: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 13: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press lock and open release clip in direction of arrow.
Disconnect plug connection.

Fig 14: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 15: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Pull out lock and press.
Disconnect plug connection.

Fig 16: Pulling Out Lock And Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 17: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 18: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Fig 19: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
