12 51 235 Remove and install/replace Module 1, sensor system engine wiring: Notes
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTROSTATIC DISCHARGE)
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.
NOTE:
TECHNICAL INFORMATION
Disconnecting control units may cause fault code entries and functional limitations. Fault code entries must be read out and deleted if necessary.
Disconnecting control units may cause fault code entries and functional limitations. Fault code entries must be read out and deleted if necessary.
Preliminary work
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT TRIM PANEL
- Disconnecting the battery earth lead
- Refer to REMOVING THE ACOUSTIC COVER
- Remove the cover in the left engine compartment
- Remove the right cover in the engine compartment
- Remove the sound insulation on the bulkhead upper part at the center
- Refer to REMOVING TRAILING LINK AT SPRING STRUT DOME
- Refer to REMOVING ACOUSTIC COVER AT REAR
- Remove the FRONT UNDERBODY PROTECTION
- Refer to DRAIN THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM
- Refer to UNINSTALL COVER FOR THE DME CONTROL UNIT
- Refer to DISCONNECTING CONNECTOR FROM DME CONTROL UNIT AND FROM POWER DISTRIBUTION MODULE (PDM)
- Refer to REMOVE THE INTEGRATED POWER SUPPLY MODULE (PDM)
- Refer to REMOVING THE DME CONTROL UNIT
- Refer to REMOVING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT

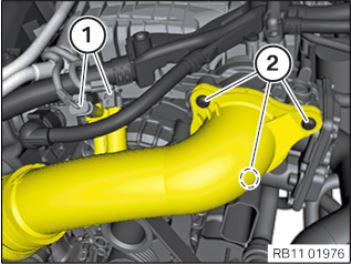

- Unlock and disconnect connector (1). Loosen screws (2). Remove charge air line from throttle body and place to one side.
- Refer to REMOVE TANK VENT VALVE
- Refer to REMOVING THE INTAKE PLENUM
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM
- Refer to INSTALLING THE TANK VENT VALVE
- Fasten charge air line to the throttle body
- Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT
- Refer to INSTALLING THE DME CONTROL UNIT
- Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM)
- Refer to CONNECT THE CONNECTOR TO THE DME CONTROL UNIT AND THE POWER DISTRIBUTION BOX (PDM)
- Refer to INSTALL COVER FOR THE DME CONTROL UNIT
- Refer to CONNECT THE COOLANT HOSE TO THE RADIATOR OF THE LOW-TEMPERATURE COOLANT CIRCUIT
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to INSTALLING ACOUSTIC COVER AT REAR
- Install tension strut on spring strut dome. Jointing torque: 56 Nm, angle of rotation: 90° NOTE: Replace screws.
- Install the sound insulation on the bulkhead upper part at the center
- Refer to INSTALL ACOUSTIC COVER
- Install the cover in the engine compartment on the left
- Install the cover in the engine compartment on the right
- Connecting the battery earth lead
- Install right luggage compartment trim panel
- Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM
- Install the front underbody protection
