REP-TAT-P-1251-01 Install the wiring harness section for sensor system 1

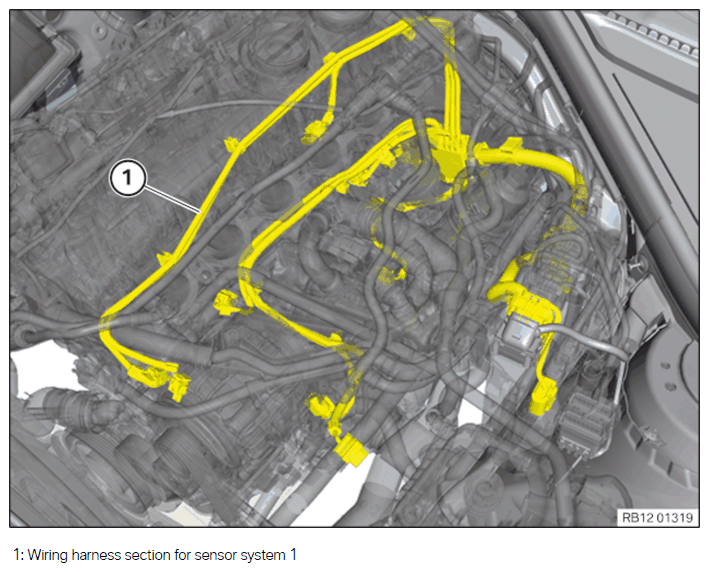

Overview: Wiring harness section for sensor system 1

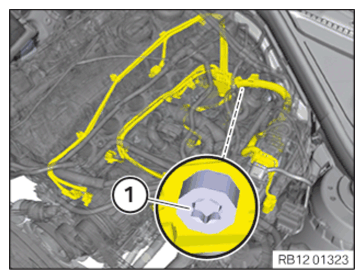

- Loosen screw (1).
- Unlock and pull off the connector of the DME control unit.
- Unlock and remove the connector of the integrated supply module (PDM).
- Unlock the connector of the pressure sensor on the intake plenum and pull off.
- Unlock the connector of the knock sensors and pull off.
- Unlock and pull off the connector of the crankshaft sensor.
- Unlock and pull off the connector of the oil-level sensor.
- Unlock and pull off the connector of the solenoid valve.
- Unlock and pull off the connector of the oil pressure sensor.
- Unlock and pull off the connector from the electrical auxiliary pump.
- Unlock and pull off the connector of the heat management.
- Unlock and pull off the connector of the coolant temperature sensor.
- Unlock and pull off the connector of the alternator.
- Unlock and pull off the connector of the charging pressure sensor.
- Unlock and pull off the connector of the charge-air temperature sensor.
- Unlock and pull off the connector from the throttle valve.
- Detach the wiring harness section (1) from the clamps.
- Remove the wiring harness section (1).
