32 00... General chassis and suspension definitions

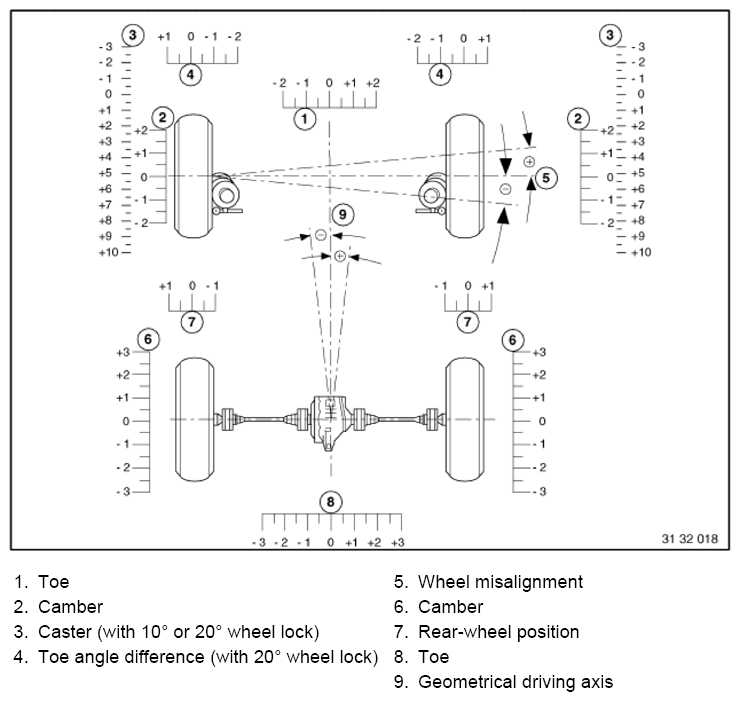

Fig 1: Identifying Chassis And Suspension Definitions
G09877300Courtesy of BMW OF NORTH AMERICA, INC.
