REP-TAT-P-6135-02 Install the front electronic module (FEM)

• Insert the front electronic module (FEM) (3) and tighten the bolt (2).

  Tightening torque:

  Front electronic module (FEM) on the A-pillar: 1.7 Nm

• Connect all connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

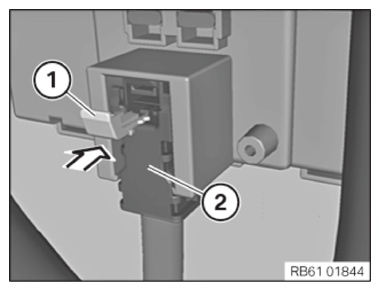

• Insert positive battery cable (2).
• Close lock (1) indirection of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

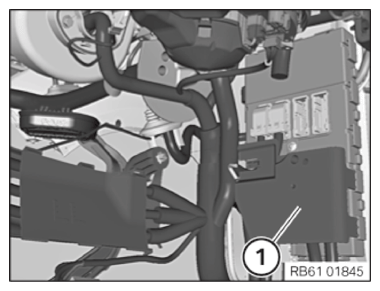

• Secure cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

• Install the side trim panel in footwell on right A-pillar
• Install the bottom right instrument panel trim
• Install the front door sill cover strip
• Connect the battery earth lead
• Install the right luggage compartment trim panel
• Encode/program CONTROL UNIT(S)
