61 13... Circular connector, 7-pin, 8-pin, system D2.5

Special tools required:

• 61 0 303

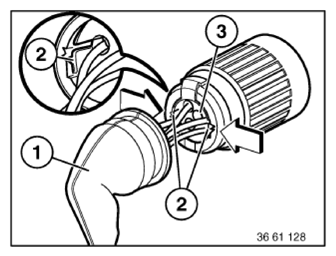

Carefully detach rubber grommet (1).

Carefully press back retaining tabs (2) of internal connector (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Slide internal connector (3) in arrow direction until retaining tabs (2) lock into groove (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 61 0 303 (61 1 132) to press back safety catch (5) of corresponding contact and pull out cable with contact.

Courtesy of BMW OF NORTH AMERICA, INC.
