61 13... Special tools for wiring harness repairs

Special tools required:

• 61 0 300
• 61 0 400
• 61 1 100
• 61 4 320
• 61 0 200
• 61 0 210
• 61 0 220
• 61 0 230
• 61 0 240

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

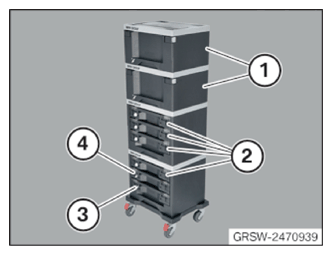

Wiring harness repair case 4.0:

Courtesy of BMW OF NORTH AMERICA, INC.

Repair product range, vehicle electrical system:

Single parts for wiring harness repairs*

* Refer to the applicable BMW parts catalogue.

Courtesy of BMW OF NORTH AMERICA, INC.

Release and press-out tool:

• Special tool 61 0 300
• Special tool 61 0 400 (MINI N12/N14)
• Special tool 61 1 100 (combustion engine)

Handling:

• Refer to NOTES FOR OPENING CONTACTS AND LOCKS OF DIFFERENT CONNECTOR CONTACT SYSTEMS

Cutting to length and strip off insulation from cables:

Wire stripper MultiStrip10*

*Refer to the applicable BMW workshop equipment catalogue.

Handling:

• CUTTING CABLES TO LENGTH AND STRIPPING OFF INSULATION

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts) and butt connectors:

• Special tool 61 4 320:
  1. Tool without crimping head
  2. Crimping head (Refer to STRIP OFF INSULATION AND CUTTING FIBER-OPTIC CABLES TO LENGTH )
  3. Crimping head (Refer to CRIMPING FIBER-OPTIC CABLE CONTACTS )
  4. Crimping head (Refer to CRIMPING MQS CONTACTS )
  5. Crimping head (Refer to CRIMPING MPQ CONTACTS )
  6. Replacement blade (face-cutting fiber-optic cables)
  7. Replacement blade with tool (insulation stripping unit)
  8. Universal crimping head

Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (large contacts) and butt connectors:

• Special tool 61 0 200 (crimping kit)
• Special tool 61 0 210 (matrix set SLK 8)
• Special tool 61 0 220 (matrix set SLK 2.8)
• Special tool 61 0 230 (matrix set MAK 8/DFK4)

Courtesy of BMW OF NORTH AMERICA, INC.

• Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )
