61 31... Removing and installing/replacing Drivelogic button

Necessary preliminary work:

Removal:

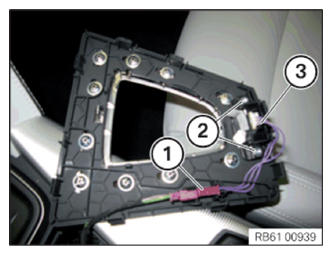

Unlock and disconnect the connector (1).

Slacken both screws (2).

Remove the Drivelogic button (3) from the trim.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Join the Drivelogic button (3) into the trim.
Tighten both screws (2).
Tightening torque: 61 31 4AZ .

Attach the connector (1) and engage in bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
