12 14 521 Replacing crankshaft pulse sensor (S55)

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) !

Necessary preliminary work:

• Remove STARTER MOTOR .

Removal:

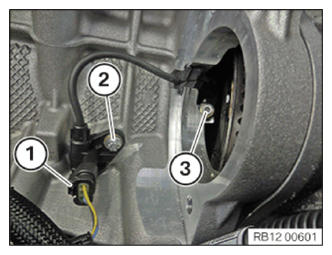

Unlock connector (1) and pull off.

Release screw (2).

Remove connector housing from crankcase.

Release screw (3).

Pull pulse sensor from crankcase and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

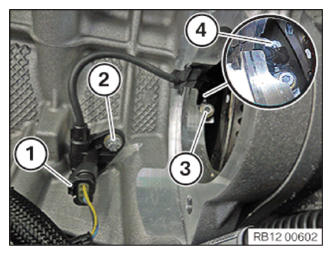

During installation of pulse sensor make sure that guide pin (4) of pulse sensor is inserted in guiding groove (2) of crankcase.

Tighten screw (3).

Tightening torque: 13 62 8AZ

Tighten screw (2).

Tightening torque: 13 62 2AZ .

Attach and lock connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install STARTER .
