51 00... Service position of engine compartment lid

Special tools required:

WARNING: Danger of injury and damage!
Engine compartment lid must be held by a second person helping.

If necessary, open engine compartment lid.

NOTE: Graphic shows F01.

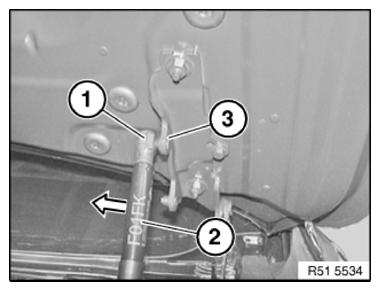

Unclip gas pressure spring (2) in direction of arrow from ball stud (3).

Fig 1: Removing Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On the F25, use special tool 51 2 160 instead of 51 2 240.

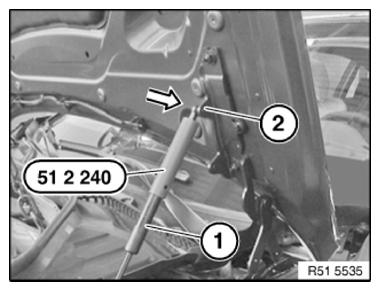

Push special tool 51 2 240 over gas pressure spring (1).

Clip ball socket of special tool 51 2 240 onto ball stud (2).

Fig 2: Pushing Special Tool 51 2 240 Over Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.
