41 00... Stamping Vehicle Identification Number (Needle Stamping Unit)

Read and comply with General Information. See 41 00... VEHICLE IDENTIFICATION NUMBER, GENERAL .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

Fig 1: Identifying Needle Stamping System 360 - VRM BMW

Courtesy of BMW OF NORTH AMERICA, INC.

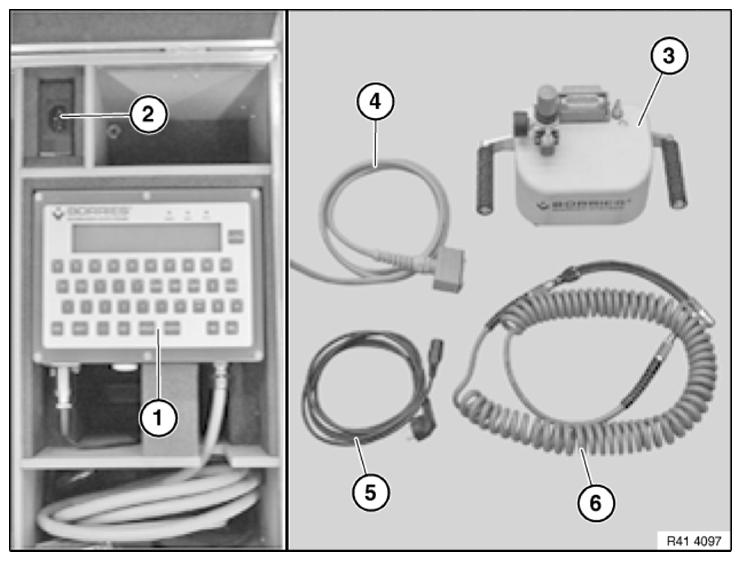

The needle stamping system 360 tool set comprises:

NOTE: A compressed-air connection is also required.

Procedure for additional vehicle identification number

Cross through original vehicle identification number.

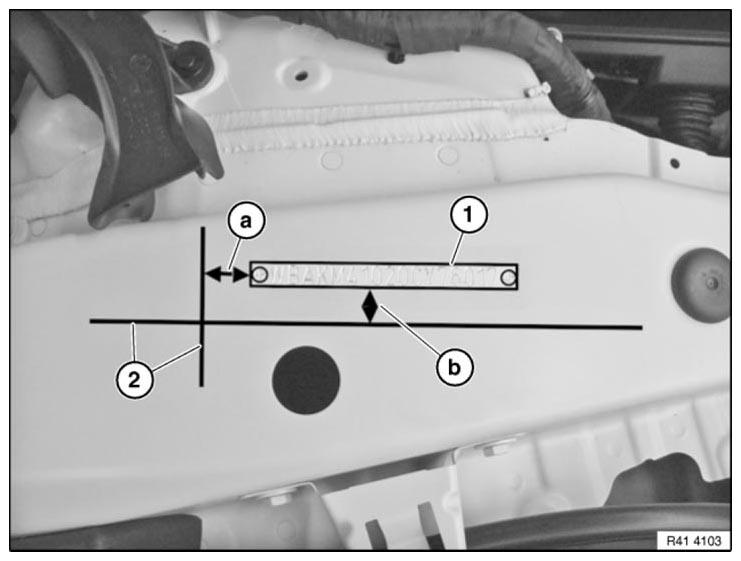

Fig 2: Identifying Vehicle Identification Number
Courtesy of BMW OF NORTH AMERICA, INC.

(1) = Original vehicle identification number (line 1).

Mark position lines (2) in accordance with specified dimensions/measurements.

Dimension a = 12 mm

Dimension b = 10 mm

Display input:

NOTE: With Layout 5 the vehicle identification number (line 1) is crossed through.

Fig 3: Identifying Vehicle Identification Number Machine

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

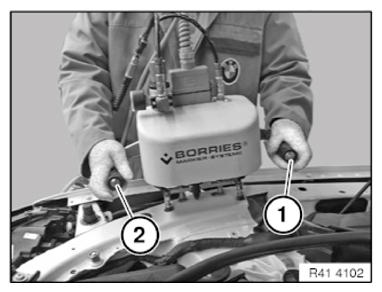

Fig 4: Identifying Suction Feet Of Needle Stamping Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Move suction feet of needle stamping unit to positions (1) and (2) shown.

NOTE: The contact surface for the suction cups of the needle imprint device must be dry and free of dust and grease!

Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

IMPORTANT: After completing the stamping operation, do not alter the position of the unit.
Do not switch off vacuum pressure.

Fig 5: Pressing Vacuum Pressure Pushbutton

Courtesy of BMW OF NORTH AMERICA, INC.

Stamping second vehicle identification number

Display input:

NOTE: With Layout 2 the already entered vehicle identification number is stamped in line 2.

Fig 6: Identifying Vehicle Identification Number Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Start stamping operation with pushbutton (2).

After the stamping operation, if necessary adapt engine compartment lid seal locator of second vehicle identification number. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .

Fig 7: Pressing Vacuum Pressure Pushbutton

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
