Characteristic curve and setpoint values
The electrical voltage at the resistor is dependent on the coolant temperature. A table that specifies the temperature associated with each voltage value is stored in the engine control. This compensates for the non-linear relationship between electrical voltage and temperature.

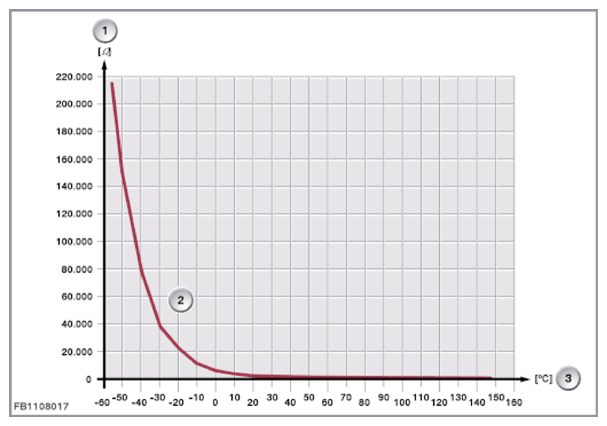

| Item | Explanation |
|---|---|
| 1 | Resistance |
| 2 | Characteristic curve for hot conductor (NTC) |
| 3 | Temperature |
Please note the following setpoint values for the coolant temperature:
| Variable | Value |
|---|---|
| Voltage range | 4.9 to 5.1 V |
| Signal voltage | approx. 0.2 to 3.3 V |
| Response time | 15 s |
| Temperature resolution | ±1 °C |
| Maximum output current | 20 mA |
| Temperature range | -55 °C to 160 °C |
